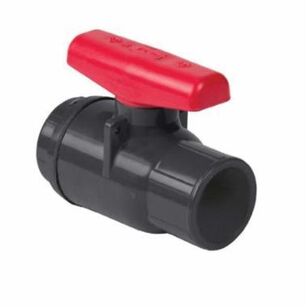

SPEARS 6622-012C 1-1/4 CPVC BLL VLV
SPEARS 6622-012C 1-1/4 CPVC BLL VLV
Spears® Compact Ball Valve, 2000 Series, 1-1/4 in Nominal, Socket Connection, Full Port, 235 psi, Water Media, 4-5/8 in Inlet to Outlet Length, 2-13/16 in Top to Inlet Center, Handle Operator, 311 Cv Flow Coefficient (Cv), Material Standard: ASTM D1784 Type IV, CPVC Body, PTFE Seat, CPVC Stem, CPVC/PTFE Trim, Polypropylene Handle, CPVC Ball, EPDM Softgoods, Gray, 73 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$139.07 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSpears®
Ball MaterialCPVC
Body MaterialCPVC
ColorGray
Connection TypeSocket
Flow Coefficient (Cv)311
Handle MaterialPolypropylene
Inlet to Outlet Length4-5/8
Material StandardASTM D1784 Type IV
MediaWater
Nominal Size1-1/4
Operator TypeHandle
Port TypeFull
Pressure Rating235
Seat MaterialPTFE
Series2000 Series
Softgoods MaterialEPDM
Stem MaterialCPVC
Temperature Rating73
Top to Inlet Center2-13/16
Trim MaterialCPVC/PTFE
Additional Information
NSF Approved
Features & Benefits
- Industrial-grade, maintenance-free sealed unit New actuator-ready body - accepts Spears® improved mini-mount actuator mounting kits New double O-ring stem seal Schedule 80 full port design Spears® Safe-T-Shear® stem PTFE self-adjusting floating seats Suitable for vacuum service
Marketing Information
Economical, low profile quarter-turn shut-off valve is excellent for general purpose and many OEM applications. PVC and CPVC valves are available in IPS sizes 1/2 in through 2 in with socket, regular thread and flanged.
SPEARS 6622-012C 1-1/4 CPVC BLL VLV
BrandSpears®
MFG #6622-012C
Keller #582105
My Part ##
Last Ordered#
$139.07 / ea
