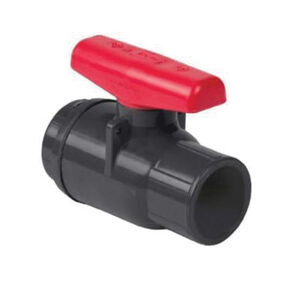

Spears® Compact 2000 6622-010C Ball Valve, 1 in, Socket, CPVC, 235 psi
Spears® Compact 2000 6622-010C Ball Valve, 1 in, Socket, CPVC, 235 psi
Spears® Compact 2000 Ball Valve, 1 in Nominal, Socket Connection, Full Port, 235 psi, Water Media, 3-15/16 in Inlet to Outlet Length, 2-5/16 in Top to Inlet Center, Handle Operator, 157 Cv Flow Coefficient (Cv), Material Standard: ASTM D1784, CPVC Body, PTFE Seat, PTFE Trim, Polypropylene Handle, PTFE Softgoods, Gray, 73 deg F, 3-15/16 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$84.97 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSpears®
ApplicationFor use in potable water service
Body MaterialCPVC
ColorGray
Connection TypeSocket
Dimensions3-15/16 " L
Domestic/ImportDomestic
Flow Coefficient (Cv)157
Handle MaterialPolypropylene
IndustryPlumbing
Inlet to Outlet Length3-15/16
Material StandardASTM D1784
MediaWater
Nominal Size1
Operator TypeHandle
Port TypeFull
Pressure Rating235
Seat MaterialPTFE
Softgoods MaterialPTFE
Temperature Rating73
Top to Inlet Center2-5/16
Trim MaterialPTFE
Additional Information
NSF Certified
Features & Benefits
- Industrial-grade, maintenance-free sealed unit New actuator-ready body - accepts Spears® improved mini-mount actuator mounting kits New double O-ring stem seal SCH 80 full-port design Spears® Safe-T-Shear® stem PTFE self-adjusting floating seats Suitable for vacuum service
Documents
Marketing Information
Economical, low-profile 1/4-turn shut-off valve is excellent for general-purpose and many OEM applications. PVC and CPVC valves are available in IPS® sizes 1/2 in through 2 in with socket, regular thread and flanged.
Spears® Compact 2000 6622-010C Ball Valve, 1 in, Socket, CPVC, 235 psi
BrandSpears®
MFG #6622-010C
