IAPMO Approved|NSF 372

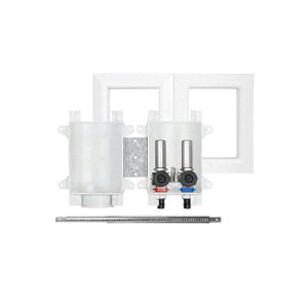

• Durable ABS boxes with 1/4-turn ball valves Mounts securely over stud or between studs Separate boxes for supply and drainage for flexible layout Test cap in drain box removes easily with pliers Included debris covers protect boxes from dust, mud and paint

Sioux Chief 696 Series OxBox™ outlet box shall be used where necessary in plumbing supply/drainage systems. Unit shall allow for mounting with supply lines from top or bottom, on stud or between studs. Supply and drain boxes can be connected using provided galvanized U-clip or separated as desired. Supply box can be inverted. Arrester variations can be installed with arresters at any angle. Unit shall be available with 1/4-turn valves. Metal support bracket shall install into top/bottom tracks of box. Drain box shall have a 5/8 in integral testable nipple on knockout. Outlet connections shall be generally 3/4 in outlet connections should generally be provided with a test/tamper-resistant cap. Valves should be plated. Arrester option handles can be operated together (single-throw) or independently. Metal support bracket can be installed into top/bottom tracks of box. Drain box shall have a testable 5/8 in nipple on drain cover.
