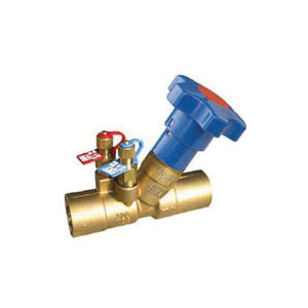

RWV® 9519 Series 9519-3/4 Balancing Valve, 3/4 in Nominal, Solder, 2.19 to 5.15 gpm, 300 psi, 15 to 260 deg F
RWV® 9519 Series 9519-3/4 Balancing Valve, 3/4 in Nominal, Solder, 2.19 to 5.15 gpm, 300 psi, 15 to 260 deg F
RWV® Balancing Valve, 9519 Series, 3/4 in Nominal, Solder Connection, Full Port, 300 psi, 2.19 to 5.15 gpm Flow Rate, Water Media, Manual Actuator, 4.06 in Top to Inlet Center, 1-Handle Handles, DZR Brass Body, Brass Stem, PTFE Seal, DZR Brass Disc, Brass/DZR Brass Trim, ABS Handle, EPDM/PTFE/Steel Softgoods, Hand Wheel Operator, 4.24 Cv Flow Coefficient (Cv), 15 to 260 deg F, Material Standard: ASTM C35330, Contains Lead, 4.18 in L x 4.06 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$130.45 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRWV®
Actuator TypeManual
ApplicationFor hydronic controls applications
Body MaterialDZR Brass
Connection TypeSolder
Dimensions4.18 " L x 4.06 " H
Disc MaterialDZR Brass
Flow Coefficient (Cv)4.24
Flow Rate2.19 to 5.15
Handle MaterialABS
IndustryPlumbing
Material StandardASTM C35330
MediaWater
Nominal Size3/4
Number of Handles1-Handle
Operator TypeHand Wheel
Port TypeFull
Pressure Rating300
Seal MaterialPTFE
Series9519 Series
Softgoods MaterialEPDM/PTFE/Steel
Stem MaterialBrass
Temperature Rating15 to 260
Top to Inlet Center4.06
Trim MaterialBrass/DZR Brass
Additional Information
BAA Compliant
Features & Benefits
- DZR brass fixed orifice double regulating globe valve Venturi insert Positive shut-off with memory stop Design according to BS7350 Tolerance on nominal Cvs +/-3% (test according to BS7350) Multi-turn adjustment (four full turns minimum)
RWV® 9519 Series 9519-3/4 Balancing Valve, 3/4 in Nominal, Solder, 2.19 to 5.15 gpm, 300 psi, 15 to 260 deg F
BrandRWV®
MFG #9519 3/4
Keller #586403
My Part ##
Last Ordered#
$130.45 / ea
