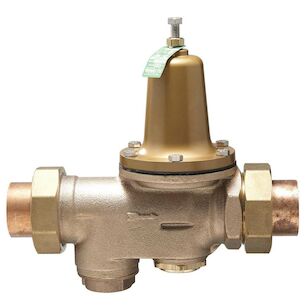

WATTS® LF25AUB-Z3 Series 0009455 Pressure Reducing Valve, 2 x 2 in Nominal, Union Solder x Union Solder, 33 to 180 deg F
WATTS® LF25AUB-Z3 Series 0009455 Pressure Reducing Valve, 2 x 2 in Nominal, Union Solder x Union Solder, 33 to 180 deg F
WATTS® Pressure Reducing Valve, LF25AUB-Z3 Series, 2 x 2 in Nominal, Union Solder x Union Solder Connection, 25 to 75 psi Adjustable, 300 psi Maximum Working, Water Media, Copper Silicone Body, Stainless Steel Seat, EPDM Disc, Lead-Free, 33 to 180 deg F, 11-1/4 in H x 4-3/4 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,671.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialCopper Silicone
Connection TypeUnion Solder x Union Solder
Dimensions11-1/4 " H x 4-3/4 " D
Disc MaterialEPDM
MediaWater
Nominal Size2 x 2
Pressure Rating25 to 75 psi Adjustable, 300 psi Maximum Working
Seat MaterialStainless Steel
SeriesLF25AUB-Z3 Series
Temperature Rating33 to 180
Shipping Dimensions (L x W x H)11.75" x 7" x 12.44"
Additional Information
ASSE 1003|CSA B356|IAPMO Listed
Features & Benefits
- Sealed spring cage with stainless steel cage screws Integral stainless steel strainer removable for cleaning Replaceable seat module
Documents
Marketing Information
This 2 in lead-free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, solder union inlet and outlet connections and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 deg F. Suitable for up to 300 psi, the pressure range can be adjusted from 25 to 75 psi with the standard setting at 50 psi.
WATTS® LF25AUB-Z3 Series 0009455 Pressure Reducing Valve, 2 x 2 in Nominal, Union Solder x Union Solder, 33 to 180 deg F
BrandWATTS®
MFG #0009455
Keller #587836
