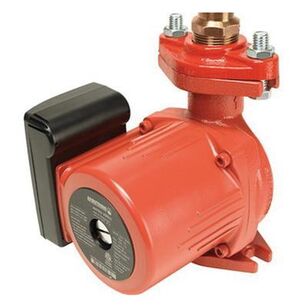

ARMSTRONG Astro 2 Series Astro 230ci-r 110223-315 Circulator Pump, 0 to 64 gpm, 97 W, 115 V, 0.81 A, 60 Hz, Iron
MFG #110223-315
Item #589045
Mfr. Part #110223-315
UPC #
ARMSTRONG Circulator Pump, Astro 2 Series, Model: Astro 230ci-r, 0 to 64 gpm Flow Rate, 31 ft Maximum Head, 97 W, 115 V, 0.81 A, 60 Hz, 150 psi Maximum Pressure, 3600 rpm Motor Speed Rating, 1/8 hp, 1/2 in Connection, 2-Bolt Flanged Connection, 1 ph Phase, In-Line Mounting, 230 deg F, Iron, 6.38 in H x 5.63 in W, Additional Information: Noryl Impeller Material
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
Call for Price / ea
Out of Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandARMSTRONG
Additional InformationNoryl Impeller Material
Amperage Rating0.81
Connection Size1/2
Connection Type2-Bolt Flanged
Dimensions6.38 " H x 5.63 " W
Flow Rate0 to 64
Frequency Rating60
HP Rating1/8
IndustryHydronics
MaterialIron
Maximum Head31
Maximum Pressure150
ModelAstro 230ci-r
Motor Speed Rating3600
Mounting Type"-Line
Phase1
Power Rating97
SeriesAstro 2 Series
Temperature Rating230
Voltage Rating115
Additional Information
CSA C22.2 File No. 108-01|ETL Listed|UL 778
Features & Benefits
Ceramic shaft and bearings
Cross-reference information is printed on the box for convenient access
E-coating on the inside of cast-iron volutes provides enhanced corrosion protection for improved reliability
Flange-to-flange and bolt-to-bolt compatibility offers quick and easy exchange of competing models
Plug-in terminal strip saves time
High-flow check valve is pre-installed for convenience, where the installation does not call for a check valve, it can be removed in seconds
Large wiring box and convenient plug-in terminal strip save time
EPDM gasket
Removable check valve installed at pump outlet
Astro 2 circulators offer contractor friendly features for fast and convenient installation
Wet rotor mechanical seal
