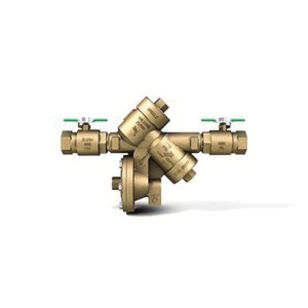

Zurn® 1-975XL2 Reduced Pressure Principle Backflow Preventer, 1 in, Threaded, Lead-Free
Zurn® 1-975XL2 Reduced Pressure Principle Backflow Preventer, 1 in, Threaded, Lead-Free
Zurn® Reduced Pressure Principle Backflow Preventer, 975XL2 Series, 1 in Nominal, Threaded Connection, Full Port, 175 psi, Water Media, Handle Actuator, 17-3/8 in Inlet to Outlet Length, 3-1/2 in Top to Inlet Center, Handle Operator, Material Standard: ANSI B1.20.1, ASTM B584, Bronze Body, Lead-Free, 180 deg F, 17-3/8 in L, Domestic/Import: Import, Additional Information: 300 Stainless Steel Spring, Cast Bronze Valve
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,126.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandZurn®
Actuator TypeHandle
Additional Information300 Stainless Steel Spring, Cast Bronze Valve
ApplicationFor plumbing, irrigation, fire protection and waterworks for both indoor and outdoor installations
Body MaterialBronze
Connection TypeThreaded
Dimensions17-3/8 " L
Domestic/ImportImport
IncludesQT Ball Valve
Inlet to Outlet Length17-3/8
Material StandardANSI B1.20.1, ASTM B584
MediaWater
Nominal Size1
Operator TypeHandle
Port TypeFull
Pressure Rating175
Series975XL2 Series
Temperature Rating180
Top to Inlet Center3-1/2
Additional Information
ANSI/NSF 61|ASSE Specified|AWWA Compliant|CSA Certified|cUPC Listed|IAPMO Listed
Features & Benefits
- Short lay length eases replacement and repair time Y-pattern design provides separate access to checks and relief valve for reduced labor costs Trusted and recognized favorite by installers worldwide Approved by the foundation for cross connection control and hydraulic research at the university of Southern California Lead-free compliant
Marketing Information
The 975XL2 reduced pressure principle assembly is used in high health hazard, potable water applications for protection from both back siphonage and backpressure of contaminated water into the potable water supply. The wye pattern, bronze body design provides separate access to each check valve and the relief valve to reduce labor costs and repair time. It's short lay length eases replacement costs and installation time. The 975XL2 includes all the necessary components for managing your system and is the simplest, best and most reliable backflow preventer in the market today.
