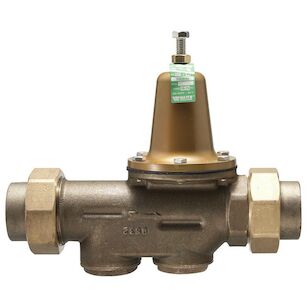

WATTS® LF25AUB-Z3 Series 0009258 Pressure Reducing Valve, 3/4 in Nominal, Union FNPT, 300 psi, 33 to 180 deg F
WATTS® LF25AUB-Z3 Series 0009258 Pressure Reducing Valve, 3/4 in Nominal, Union FNPT, 300 psi, 33 to 180 deg F
WATTS® Pressure Reducing Valve, LF25AUB-Z3 Series, 3/4 in Nominal, Union FNPT Connection, 300 psi, Water Media, 5-3/16 in Inlet to Outlet Length, Copper Silicon Alloy Body, EPDM Disc, Lead-Free, 33 to 180 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$847.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialCopper Silicon Alloy
Connection TypeUnion FNPT
Disc MaterialEPDM
EA Height3"
EA Length6.5"
EA Weight3.5405 lbs.
EA Width6.437"
IndustryPlumbing
Inlet to Outlet Length5-3/16
Lead-FreeYes
MediaWater
Net Content1
Nominal Size3/4
Pressure Rating300
SeriesLF25AUB-Z3 Series
Temperature Rating33 to 180
Shipping Dimensions (L x W x H)6.5" x 6.44" x 3"
Additional Information
ASSE 1003|ANSI A112.26.2|Buy American Act Compliant|CSA B356|cUPC Certified|IAPMO Certified|MIL-V-18146B Type I
Features & Benefits
- Bypass feature controls thermal expansion pressure Sealed spring cage with stainless steel cage screws Integral stainless steel strainer removable for cleaning Replaceable seat module
Documents
Marketing Information
This 3/4 inch lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, double union NPT threaded female inlet and outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
WATTS® LF25AUB-Z3 Series 0009258 Pressure Reducing Valve, 3/4 in Nominal, Union FNPT, 300 psi, 33 to 180 deg F
BrandWATTS®
MFG #0009258
Keller #592561
