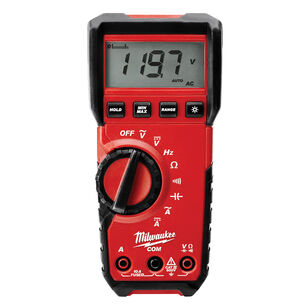

Milwaukee® 2216-20 Digital Multimeter, 6 mV to 600 V, 10 A, 40 MOhm, LCD Display
Milwaukee® 2216-20 Digital Multimeter, 6 mV to 600 V, 10 A, 40 MOhm, LCD Display
Milwaukee® Digital Multimeter, 6 mV to 600 V, 10 A, 2 Hz to 50 MHz Frequency, 1000 uF Capacitance, 40 MOhm Resistance, LCD Display, Voltage Accuracy: +/-0.5%, +/-1%, Current Accuracy: +/-1.5%, +/-1%, +/-2 % Resistance Accuracy, Capacitance Accuracy: +/-1.9 %, Frequency Accuracy: +/-0.1 %, 14 to 122 deg F, 6-1/2 in L Dimensions, Additional Information: AA Battery Size
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$213.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandMilwaukee®
Additional InformationAA Battery Size
Amperage Rating10
Battery TypeAA Alkaline
Capacitance1000
Capacitance Accuracy+/-1.9
Current Accuracy+/-1.5%, +/-1%
Dimensions6-1/2 " L
Display TypeLCD
Frequency Accuracy+/-0.1
Frequency Rating2 Hz to 50 MHz
Includes(1) Test Lead Set, (2) AA Batteries, Manual
IndustryPlumbing
Resistance40
Resistance Accuracy+/-2
Temperature Rating14 to 122
Voltage Accuracy+/-0.5%, +/-1%
Voltage Rating6 mV to 600 V
Warranty5 Year
Shipping Dimensions (L x W x H)6.05" x 10.55" x 2.7"
Additional Information
C/US ETL Listed|CE Certified |EN61010-1 |UL 61010-1 |UL 61010-031 (Probes) |EN61010-031 (Probes) |IEC/EN 61010-1 2nd Edition for measurement Cat III |600 V |Pollution Degree 2 |EMC EN61326-1
Features & Benefits
- True-RMS for accurate measurement in all applications Rugged over molding for increased grip and durability
Documents
Marketing Information
Milwaukee® 2216-20 digital multimeter True RMS measurement to accurately measure all applications, CATIII 600 V for increased safety in demanding electrical environments; AC voltage range of 6 mV to 600 V, DC voltage range of 600 mV to 600 VDC, Resistance measurement from 600 ohm to 40 Mohm, frequency measurement from 10 Hz to 50 kHz, detects continuity at less than 30 ohm, Current measurement to 10 A AC/DC, hold function, min/max function and digital bar graph readout, black on white display and backlight for easier reading, rugged over-molding for improved durability and user grip; proprietary rail system for mounting accessories, includes one (1) test lead set, (2) 2AA batteries, and manual, covered by 5-years warranty.
Milwaukee® 2216-20 Digital Multimeter, 6 mV to 600 V, 10 A, 40 MOhm, LCD Display
BrandMilwaukee®
MFG #2216-20
Keller #592666
