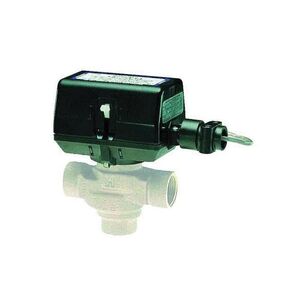

Honeywell VC8714ZZ11/U Valve Actuator, Plastic
Honeywell VC8714ZZ11/U Valve Actuator, Plastic
Honeywell Valve Actuator, 24 VAC, 60 Hz, VA Rating: 6 VA, 5 ft Plenum-Rated Cable Electrical Connection, Lever Handle Operator, 6 s Timing, 0.4 in Stroke, 60 psi, IP40 Enclosure, 2-Position, SPST Signal, Direct Coupled Mounting, Plastic Body, 32 to 150 deg F, 2.8 in H x 3.7 in W x 2.7 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$206.68Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
Brandresideo
Body MaterialPlastic
Dimensions2.8 " H x 3.7 " W x 2.7 " D
Electrical Connection5 ' Plenum-Rated Cable
Enclosure TypeIP40
Frequency Rating60
IndustryHVAC
Mounting TypeDirect Coupled
Operator TypeLever Handle
Pressure Rating60
Signal Type2-Position, SPST
Stroke0.4
Temperature Rating32 to 150
Timing Range6
VA Rating6
Voltage Rating24
Additional Information
UL 94-5V|CSA LR1322-367|CE 89/336|ECC 73/23/EEC
Features & Benefits
- Double insulated actuator Quick and easy replacement of moving parts Actuator head installation does not require draining the system Selectable/switchable electronic fail safe normally open or normally closed All VC Series actuator valve combinations provide 60 sq-in/lb close-off Shipping and storage temperature of -40 to 150 deg F Environmental, electrical or ingress protection rating double insulated One internal auxiliary switch 203 deg F fluid temperature Fail safe mode stays in place Molded strain relief cable, conduit clamp Self-alignment shaft adapter Switch ratings 2.2 A (5 to 110 VAC)/1 A (110 to 277 VAC) inductive, min DC switching capability 5 mA at 24 VAC Non-condensing humidity
Documents
Marketing Information
Control central heating and cooling, fan coil systems, radiators and convectors. Depending on the model, it can be controlled by a low voltage SPST or SPDT switch, pulse width modulated 24 VAC signal or floating input, modulating controller.
Honeywell VC8714ZZ11/U Valve Actuator, Plastic
Brandresideo
MFG #VC8714ZZ11/U
Keller #593316
