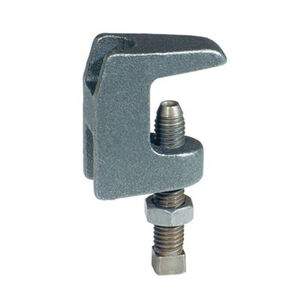

ANVIL® 93 Series 560009169 Universal Wide Throat Type C Beam Clamp, 3/8 in Rod, 1-1/4 in Thick Flange, Ductile Iron
ANVIL® 93 Series 560009169 Universal Wide Throat Type C Beam Clamp, 3/8 in Rod, 1-1/4 in Thick Flange, Ductile Iron
ANVIL® Universal Wide Throat Type C Beam Clamp, Series: 93, 3/8 in Rod, 1-1/4 in Flange Thickness, 500 lb, 250 lb Load, Ductile Iron, Plain, Additional Information: 60 in-lb Torque
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$13.10 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandAFCON®
Additional Information60 "-lb Torque
FinishPlain
Flange Thickness1-1/4
Load Capacity500 lb, 250 lb lbs.
MaterialDuctile Iron
Rod Size3/8"
Series93 Series
Additional Information
Federal Specification A-A-1192A (Type 19 & 23)|WW-H-171-E (Type 23)|ANSI/MSS SP-69 and MSS SP-58 (Type 19 & 23)|UL Listed|ULC Listed|FM Approved
Features & Benefits
- They may be attached to horizontal flanges of structural members in either the top beam or bottom beam positions Secured in place by a cup-pointed Set Screw tightened against the flange, a jam nut is provided for tightening the setscrew against the body casting Thru tapping of the body casting permits extended adjustment of the threaded rod Wider throat for attaching to flange with up to 1-1/4 in THK
Documents
ANVIL® 93 Series 560009169 Universal Wide Throat Type C Beam Clamp, 3/8 in Rod, 1-1/4 in Thick Flange, Ductile Iron
BrandAFCON®
MFG #0560009169
Keller #593969
