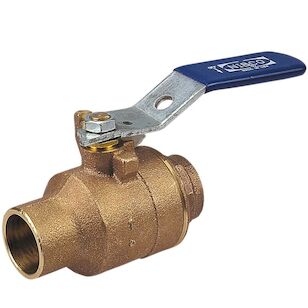

NIBCO S585-70X-1-1/2 BRZ BALL VLV **NOT FOR POTABLE USE
NIBCO S585-70X-1-1/2 BRZ BALL VLV **NOT FOR POTABLE USE
NIBCO®, 1-1/2 in Nominal, Connection Type: Female Solder Cup, Full Port, 600 psi CWP, 150 psi SWP, Oxygen Media, Quarter-Turn Standard Lever Handle Operator, Bronze Body, Silicon Bronze Stem, Reinforced PTFE Seal, Bronze Trim, Carbon Steel Handle, Brass Ball, Hard Chrome, 9.7 in L x 3 in W x 4.5 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$586.00 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialBrass
Body MaterialBronze
Connection TypeFemale Solder Cup
Dimensions9.7 " L x 3 " W x 4.5 " H
FinishHard Chrome
Handle MaterialCarbon Steel
IndustryPlumbing
MediaOxygen
Nominal Size1-1/2
Operator TypeQuarter-Turn Standard Lever Handle
Port TypeFull
Pressure Rating600 psi CWP, 150 psi SWP
Seal MaterialReinforced PTFE
Stem MaterialSilicon Bronze
Trim MaterialBronze
Shipping Dimensions (L x W x H)9.75" x 3.5" x 4.56"
Features & Benefits
- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure Maximum temperature rating 400 degrees F Chrome plated brass ball, silicon bronze stem Blowout-proof stem Standard lever handle, optional NIB-SEAL pecent Solder end connections Dezincification resistant Use in U.S. drinking water applications is prohibited after January 3, 2014 Conforms to MSS SP-110
Documents
Marketing Information
The NIBCO pecent bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve is ideal for commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas and natural gas. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO pecent ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO pecent ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
NIBCO S585-70X-1-1/2 BRZ BALL VLV **NOT FOR POTABLE USE
BrandNIBCO®
MFG #NJ83W1C
Keller #596186
My Part ##
Last Ordered#
$586.00 / ea
