NIBCO N200-236LH-4IN DI BFLY VLV
NIBCO N200-236LH-4IN DI BFLY VLV

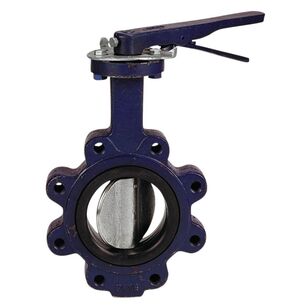

NIBCO® Butterfly Valve, N-200236 Series, 4 in Nominal, Lug Connection, 200 psi, Air, Water Media, 7.87 in Top to Inlet Center, Iron Body, EPDM Seat, Stainless Steel Stem, Buna-N Seal, Iron Disc, Buna-N Softgoods, Lever Lock Handle Operator, 225 deg F, Material Standard: ASTM A126 CL.B, Contains Lead, Finish: Epoxy-Coated, 13.62 in H, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$903.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Body MaterialIron
Connection TypeLug
Dimensions13.62 " H
Disc MaterialIron
Domestic/ImportImport
FinishEpoxy-Coated
IndustryPlumbing
Material StandardASTM A126 CL.B
MediaAir, Water
Nominal Size4
Operator TypeLever Lock Handle
Pressure Rating200
Seal MaterialBuna-N
Seat MaterialEPDM
SeriesN-200236 Series
Softgoods MaterialBuna-N
Stem MaterialStainless Steel
Temperature Rating225
Top to Inlet Center7.87
Additional Information
API 609|MSS SP-25/67
Features & Benefits
- 225 deg F continuous and 250 deg F intermittent service EPDM cartridge seat liner Nickel electro-plated ductile iron disc Stainless steel stem with bronze bushings Extended neck Not recommended for steam service
Documents
Marketing Information
The NIBCO® international lug type butterfly valve provides in-line bubble-tight shutoff at 200 PSI. The valve delivers bi-directional dead-end service without a downstream flange at pressures of 200 PSI (2" to 6"), 150 PSI (8") and 100 PSI (10"-12"). The valve performs well in commercial applications including HVAC, and hot/cold potable water.
