Sta-Rite

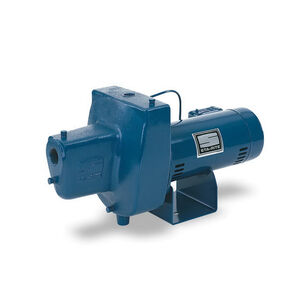

Sta-Rite HND-L Shallow Well Jet Pump, 18.7 gpm, 115/230 V, 3/4 hp, 1 ph -Phase, 25 ft Max Feet of Head
Sta-Rite
Sta-Rite HND-L Shallow Well Jet Pump, 18.7 gpm, 115/230 V, 3/4 hp, 1 ph -Phase, 25 ft Max Feet of Head
MFG #HND-L
Item #59672
Mfr. Part #HND-L
UPC #02231538226
Sta-Rite Shallow Well Jet Pump, 1-1/4 in Suction, 1 in Discharge, 18.7 gpm Flow Rate, 115/230 V, 3/4 hp, 1 ph Phase, 60 Hz, Maximum Feet of Head: 25 ft, 140 deg F Maximum Temperature, 50 psi Working Pressure, Noryl Impeller, Iron Body, 21.3 in L x 10.48 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,087.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSta-Rite
ApplicationFor sprinkling for cottages, farms, homes and water systems
Body MaterialIron
Dimensions21.3 " L x 10.48 " W
Discharge Size1
Flow Rate18.7
Frequency Rating60
HP Rating3/4
Impeller MaterialNoryl
IndustryPlumbing
Maximum Feet of Head25
Maximum Temperature140
Phase1
Suction Size1-1/4
Voltage Rating115/230
Warranty1 Year Limited
Working Pressure50
Working Pressure Rating50 psi
Additional Information
cCSAus Certified|CSA 108 Certified|UL 778 Listed
Features & Benefits
- Close grained cast iron body, drain port provided for easy winterizing Pump primes faster, handles more air with multi-port, precision molded, reinforced polypropylene diffuser Motor windings has superior insulation materials that protect against excessive moisture and contaminants to ensure prolonged motor life Shielded, permanently lubricated bearings are extensively tested to ensure extended life and smooth, quiet operation Mechanical shaft seal made of precision lapped and highly polished carbon ceramic, stainless steel construction Balanced rotor is die-cast under high-pressures for uniform performance and greater efficiency, dynamically balanced Pump and motor shaft are made of stainless steel for maximum corrosion resistance, one-piece threaded shaft for positive impeller drive and alignment Professional quality, pressure switch allows cut-in and differential adjustments
Marketing Information
The ProJet HN models are constructed with quality components and provide excellent performance for wells to 25 ft deep.
Sta-Rite HND-L Shallow Well Jet Pump, 18.7 gpm, 115/230 V, 3/4 hp, 1 ph -Phase, 25 ft Max Feet of Head
BrandSta-Rite
MFG #HND-L
Keller #59672
My Part ##
Last Ordered#
$1,087.00Â /Â ea
