VIC V030716PE3 3 CHK VLV 716-H
VIC V030716PE3 3 CHK VLV 716-H

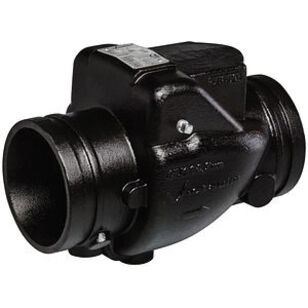

Victaulic® High Pressure Check Valve, 716H Series, 3 in Nominal, Grooved Connection, 365 psi, -30 to 230 deg F, 9.63 in Inlet to Outlet Length, 3.63 in Top to Inlet Center, Iron Body, EPDM Seal, Stainless Steel Disc, 302/304 Stainless Steel Trim, Black, Finish: Electroless Nickel-Plated/Painted
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,913.50 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
Body MaterialIron
ColorBlack
Connection TypeGrooved
Disc MaterialStainless Steel
FinishElectroless Nickel-Plated/Painted
Inlet to Outlet Length9.63
Nominal Size3
Pressure Rating365
Seal MaterialEPDM
Series716H Series
Temperature Rating-30 to 230
Top to Inlet Center3.63
Trim Material302/304 Stainless Steel
Additional Information
ASTM A536|CE Marked|UKCA Certified
Features & Benefits
- Features an elastomer encapsulated disc and a welded in nickel seat Prevents back flow Single disc mechanism incorporates a spring assisted feature for non-slamming operation Can be installed either vertically or horizontally Valve body cast with arrow indicator to assist with proper valve orientation
VIC V030716PE3 3 CHK VLV 716-H
BrandVictaulic®
MFG #V030716PE3
Keller #596796
My Part ##
Last Ordered#
$1,913.50 / ea
