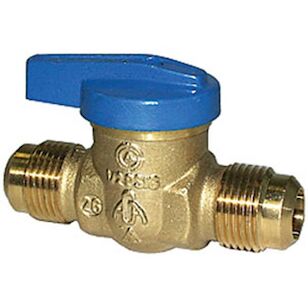

Legend Valve 102-312 Ball Valve, 3/8 in, Flared, Brass, 175 psi
Legend Valve 102-312 Ball Valve, 3/8 in, Flared, Brass, 175 psi
Legend Valve Ball Valve, 3/8 in Nominal, Flared Connection, 175 psi, Handle Operator, Material Standard: ASTM B124 UNS C37700, ASTM D2000, ASTM B159, Brass Body, NBR Seat, Brass Stem, NBR Seal, Aluminum Handle, 2.71 in L x 1.81 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$26.27Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLegend Valve
Body MaterialBrass
Connection TypeFlared
Dimensions2.71 " L x 1.81 " H
Handle MaterialAluminum
IndustryPlumbing
Material StandardASTM B124 UNS C37700, ASTM D2000, ASTM B159
Nominal Size3/8
Operator TypeHandle
Pressure Rating175
Seal MaterialNBR
Seat MaterialNBR
Stem MaterialBrass
Additional Information
ANSI Z21.15 Specified|ANSI/ASME B18.2.1 IFI C18|cUS CSA 3-88|UL 757X Listed
Features & Benefits
- Chrome-plated ball and soft seats resist contamination build-up and offer a positive seal in low- or moderate-pressure gas applications Quarter-turn, ball-type, forged brass design is more compact and superior to traditional cast bronze or cast iron gas cocks The 175 psi pressure rating permits high pressure air tests, without the grease seal blowout common to plug-type gas cocks 8-different configurations, to accommodate all gas connection-types Synthetic fiber thrust washer Forged brass stem retainer bushing Phosphor bronze wire stem retainer clip Zinc-plated steel handle screw Commercial-grade, die-cast aluminum-coated handle
Legend Valve 102-312 Ball Valve, 3/8 in, Flared, Brass, 175 psi
BrandLegend Valve
MFG #102-312
Keller #59899
My Part ##
Last Ordered#
$26.27Â /Â ea
