NIBCO S595Y-LF-2IN LF FP BLVLV
NIBCO S595Y-LF-2IN LF FP BLVLV

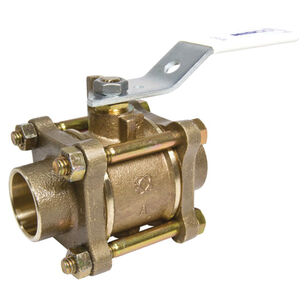

NIBCO® Ball Valve, S-595-Y-LF Series, 2 in Nominal, Female C Connection, Full Port, 3-Piece, 600 psi, 2 in Orifice, 5.78 in Inlet to Outlet Length, 3.63 in Top to Inlet Center, Quarter-Turn Lever Handle Operator, Material Standard: ASTM B16 UNS C36000, ASTM B371 UNS C69300, ASTM A449 Grade 5, ASTM B584 UNS C87850, ASTM B283 UNS C69300,, Silicon Bronze Alloy Body, PTFE Seat, Silicon Bronze Alloy Stem, FKM Seal, PTFE Packing, Steel Handle, Silicon Bronze Alloy Ball, Lead-Free, 300 deg F, 9.63 in L x 4.04 in W x 5.58 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,321.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
ApplicationFor the most specified, versatile and economical valve option in commercial and residential applications
Ball MaterialSilicon Bronze Alloy
Body MaterialSilicon Bronze Alloy
Configuration3-Piece
Connection TypeFemale C
Dimensions9.63 " L x 4.04 " W x 5.58 " H
Handle MaterialSteel
Inlet to Outlet Length5.78
Material StandardASTM B16 UNS C36000, ASTM B371 UNS C69300, ASTM A449 Grade 5, ASTM B584 UNS C87850, ASTM B283 UNS C69300,
Nominal Size2
Operator TypeQuarter-Turn Lever Handle
Orifice Size2
Packing MaterialPTFE
Port TypeFull
Pressure Rating600
Seal MaterialFKM
Seat MaterialPTFE
SeriesS-595-Y-LF Series
Stem MaterialSilicon Bronze Alloy
Temperature Rating300
Top to Inlet Center3.63
Warranty5 Year Limited
Additional Information
MSS SP-110/145|NSF/ANSI/CAN/61 and 372-82
Features & Benefits
- Valve pressure rating 600 psi non-shock cold working pressure Repairable design Silicon performance Bronze® trim Blow-out-proof stem White handle for easy lead-free identification NIBCO® double-oval lead-free body marking Dezincification-resistant
Documents
Marketing Information
The NIBCO® three-piece lead-free ball valve is constructed of lead-free dezincification-resistant (DZR) high quality performance bronze silicon alloy per ASTM specifications. The valve features solder ends for easy installation. The valve is recommended for applications that deliver water for human consumption, including commercial and residential construction.
NIBCO S595Y-LF-2IN LF FP BLVLV
BrandNIBCO®
MFG #NJ9302D
Keller #600138
My Part ##
Last Ordered#
$1,321.00 / ea
