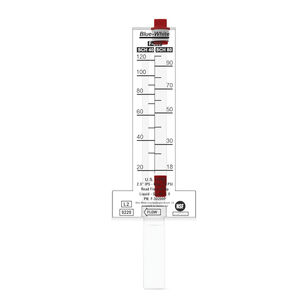

Blue-White® F-300 F-30200P Horizontal Flow Pitot Tube Flow Meter, 2 in, 5 % Accuracy, Acrylic Body, 0 to 190 deg F
Blue-White® F-300 F-30200P Horizontal Flow Pitot Tube Flow Meter, 2 in, 5 % Accuracy, Acrylic Body, 0 to 190 deg F
Blue-White® Horizontal Flow Pitot Tube Flow Meter, Model: F-300, 18 to 100 gpm, 20 to 120 gpm Flow Rate, 50 psi, 2 in Connection, Saddle End, 5 % Accuracy, 50 psi Maximum Pressure, 190 deg F Maximum Temperature, Acrylic Body, 2-7/16 in Width, 6 in Height, 0 to 190 deg F, Additional Information: Water Calibration Fluid (Specific Gravity 1), PVDF Float
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBlue-White®
Accuracy5
Additional InformationWater Calibration Fluid (Specific Gravity 1), PVDF Float
ApplicationFor US IPS Schedule 40 and Schedule 80 PVC pipes
Body MaterialAcrylic
Connection Size2
End TypeSaddle
Flow Rate18 to 100 gpm, 20 to 120 gpm
Height6
Includes(1) Flowmeter, (1) Neoprene or Rubber Gasket, (2) 316 Stainless Steel Clamps, Instruction Manual
IndustryLeisure
Maximum Pressure50
Maximum Temperature190
ModelF-300
Pressure Rating50
Temperature Rating0 to 190
Warranty1 Year
Width2-7/16
Additional Information
ASTM 1785|NSF 50
Features & Benefits
- PVDF cap that won't fade or crack PVDF float that won't stick, is chemical-resistant and easy-to-read color Well-suited for closed pipe installations Easy-to-read dual scale (SCH 40/SCH 80), screen printed on both sides of the meter body Acceptable for outdoor installations (direct sunlight okay) Pitot tube (impact tube) design makes it easy-to-install on existing pipe One-piece, machined acrylic meter body Improved accuracy Reads horizontal flow
Marketing Information
An aquatics industry standard for over six decades, Blue-White® F-300 flow meter is accurate and has reduced space requirements for installation. The aerodynamic pitot tube is designed for smooth fluid flow through the meter. There are four capture points resulting in no float bounce.
Blue-White® F-300 F-30200P Horizontal Flow Pitot Tube Flow Meter, 2 in, 5 % Accuracy, Acrylic Body, 0 to 190 deg F
BrandBlue-White®
MFG #F-30200P
Keller #60202
