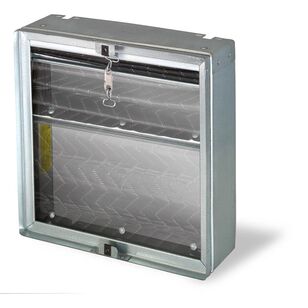

Broan-NuTone® RD1 Radiation Damper, 12-1/2 x 12-1/2 in, 1 to 3 hr Fire/Smoke, Steel, Galvanized
Broan-NuTone® RD1 Radiation Damper, 12-1/2 x 12-1/2 in, 1 to 3 hr Fire/Smoke, Steel, Galvanized
Broan-NuTone® Radiation Damper, 12-1/2 x 12-1/2 in, 1 to 3 hr Grit, Steel, Galvanized, Horizontal Mounting, 212 deg F, 3-5/8 in Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$158.66 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBroan-NuTone®
FinishGalvanized
Fire/Smoke Rating1 to 3
Height3-5/8
IndustryHVAC
MaterialSteel
Mounting TypeHorizontal
Size12-1/2 x 12-1/2
Temperature Rating212
Shipping Dimensions (L x W x H)13.1" x 4.4" x 13"
Additional Information
NFPA 90A|UL 555C
Features & Benefits
- Radiation Damper For use in 1, 2 and 3 hr rated floor ceiling and roof ceiling constructions Galvanized steel frame High temperature, non-asbestos, reinforced fiber thermal fabric Stainless steel closure springs 212 deg F fusible link Separate outer frame allows complete fan and damper serviceability without disturbing the surrounding ceiling material For use with fans and ENERGY STAR® qualified fan/lights Compatible with the following fan and fan/light models - Broan LoSone Select® L100, L150, L200, L250 and L300 Series For LoSone Select® ventilation fans
Documents
Marketing Information
The Broan-NuTone® RD1 radiation damper prevents the rapid spread of fire to other areas of a home during a fire. Many codes require that exhaust fans installed in multi-family homes, with fire-rated ceilings, must be protected by radiation dampers. When the air temperature passing through the damper exceeds 165 deg F, the fusible link melts, triggering the thermal fabric to automatically close across the damper. Airflow is interrupted by a flame and heat barrier, preventing the rapid spread of fire to other areas of the home.
Broan-NuTone® RD1 Radiation Damper, 12-1/2 x 12-1/2 in, 1 to 3 hr Fire/Smoke, Steel, Galvanized
BrandBroan-NuTone®
MFG #RD1
Keller #602637
My Part ##
Last Ordered#
$158.66 / ea
