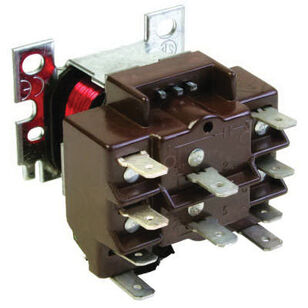

Honeywell R8222V1003/U Relay, DPDT, 24 VAC Coil
Honeywell R8222V1003/U Relay, DPDT, 24 VAC Coil
Honeywell Relay, 50/60 Hz, 24 VAC Coil, DPDT, 125 VA at 120/240/480 VAC Maximum, 25 VA at 24 VAC, 3 A at 277 VAC Resistive, 3 VA at 24/120/480 VAC Minimum Contact, Double Quick-Connect Terminal, -20 to 155 deg F, 1-7/8 in Height, 2-3/8 in Width, 2-5/32 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$75.80Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
ApplicationFor refrigeration and air conditioning equipment, appliances, vending machines
Coil Voltage24
Contact ConfigurationDPDT
Contact Rating125 VA at 120/240/480 VAC Maximum, 25 VA at 24 VAC, 3 A at 277 VAC Resistive, 3 VA at 24/120/480 VAC Minimum
Depth2-5/32
Frequency Rating50/60
Height1-7/8
IndustryHVAC
Temperature Rating-20 to 155
Terminal TypeDouble Quick-Connect
Width2-3/8
Additional Information
CSA File Number LR35066|Guide Number 184-N-13.13|Guide Number NLDX2|UL Listed File Number E59779
Features & Benefits
- Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation Open coil assures cooler operation Laminated magnet construction for high efficiency Base designed for easy replacement of competitive relays Contact rating - 3 A at 480 VAC, 6 A at 208/240/277 VAC, 12 A at 120 VAC full load; 18 A at 480 VAC, 35 A at 208/240/277 VAC, 60 A at 120 VAC locked rotor; 10 A at 480 VAC, 20.8 A at 120/208/240/277 VAC resistive
Documents
Honeywell R8222V1003/U Relay, DPDT, 24 VAC Coil
BrandHoneywell
MFG #R8222V1003/U
Keller #604829
My Part ##
Last Ordered#
$75.80Â /Â ea
