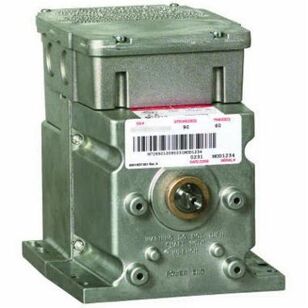

Honeywell Modutrol IV 41 Series M4185B1009/U Electric Actuator, 24/120/230 VAC, 30 to 60 s Timing, Die Cast Aluminum
Honeywell Modutrol IV 41 Series M4185B1009/U Electric Actuator, 24/120/230 VAC, 30 to 60 s Timing, Die Cast Aluminum
Honeywell Modutrol IV 41 Series Electric Actuator, Model: M4185, 7.2/3.6 A Full Load, 43.2 A at 120 V, 21.6 A at 240 V Locked Rotor, 24/120/230 VAC, 50/60 Hz Frequency, VA Rating: 20 VA, Electrical Connection: Quick Connect, 30 to 60 s Timing, Die Cast Aluminum, 60 in-lb Torque, -40 to 150 deg F, NEMA 3 Enclosure, Dimensions: 8-3/4 in L x 5-1/2 in W x 6-7/16 in H, On/Off Switch Action, On/Off Switch Control, Foot Mounting, 90 to 160 deg Rotation, Shaft Design: Square, Clockwise Shaft Rotation, 3/8 in Shaft, Adjustable Stroke
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,151.68Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Action TypeOn/Off Switch
Amperage Rating7.2/3.6 A Full Load, 43.2 A at 120 V, 21.6 A at 240 V Locked Rotor
ApplicationFor use to operate dampers or valves in applications where it is necessary or desirable to have the controlled element return to the starting position in the event of power failure or interruption
Control TypeOn/Off Switch
Dimensions8-3/4 " L x 5-1/2 " W x 6-7/16 " H
Electrical ConnectionQuick Connect
Enclosure TypeNEMA 3
Frequency Rating50/60
MaterialDie Cast Aluminum
ModelM4185
Mounting Type'
Rotation Angle90 to 160
Series41 Series
Shaft DesignSquare
Shaft RotationClockwise
Shaft Size3/8
StrokeAdjustable
Temperature Rating-40 to 150
Timing Range30 to 60
Torque Rating60
VA Rating20
Voltage Rating24/120/230
Additional Information
UL File No. E4436, Guide No. XAPX Listed
Features & Benefits
- Fixed torque throughout the entire voltage range Integral junction box provides NEMA 3 weather protection Motor and circuitry operate from 24 VAC Quick-connect terminals are standard Motors have auxiliary switch cams Integral auxiliary switches are available factory mounted or can be field added Motors have dual shafts (slotted and tapped on both ends) Nominal timing standard of 30 s (90 deg stroke) and 60 s(160 deg stroke)
Documents
Marketing Information
Series 41 Modutrol IV™ motors are 2-position (line voltage control) spring return motors. They are used to operate normally open (NO) or normally closed (NC) dampers or valves in applications where it is necessary or desirable to have the controlled element return to the starting position in the event of power failure or interruption.
