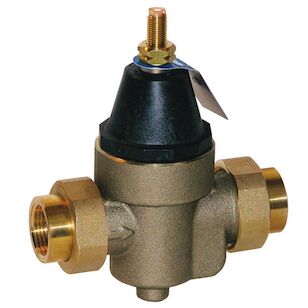

WATTS® LFN45B Series 0009491 Pressure Reducing Valve, 1 x 1 in Nominal, Union FNPT x Union FNPT, 25 to 75 psi
WATTS® LFN45B Series 0009491 Pressure Reducing Valve, 1 x 1 in Nominal, Union FNPT x Union FNPT, 25 to 75 psi
WATTS® Pressure Reducing Valve, LFN45B Series, 1 x 1 in Nominal, Union FNPT x Union FNPT Connection, 25 to 75 psi, Water Media, Copper Silicon Body, Thermoplastic Seat, Elastomer Disc, Lead-Free, 33 to 180 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$561.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialCopper Silicon
Connection TypeUnion FNPT x Union FNPT
Disc MaterialElastomer
IndustryPlumbing
Lead-FreeYes
MediaWater
Nominal Size1 x 1
Pressure Rating25 to 75
Seat MaterialThermoplastic
SeriesLFN45B Series
Temperature Rating33 to 180
Shipping Dimensions (L x W x H)8.24" x 6.44" x 3.5"
Additional Information
ASSE 1003|NSF/ANSI 61-G
Features & Benefits
- FNPT union inlet and outlet Integral stainless steel strainer removable for cleaning Thermoplastic seat and cage Sealed spring cage for accessible outdoor or pit installations
Documents
Marketing Information
This 1 in lead-free water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead-free brass body construction, double union threaded female inlet and outlet connection, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass, and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 deg F. Suitable for up to 400 psi, the pressure range can be adjusted from 25 to 75 psi with the standard setting at 50 psi.
WATTS® LFN45B Series 0009491 Pressure Reducing Valve, 1 x 1 in Nominal, Union FNPT x Union FNPT, 25 to 75 psi
BrandWATTS®
MFG #0009491
Keller #607523
My Part ##
Last Ordered#
$561.00 / ea
