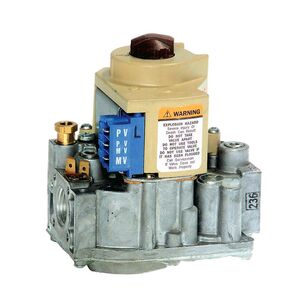

Honeywell VR8204A2076/U Combination Gas Control Valve, 1/2 in, NPT, 1/2 psi
Honeywell VR8204A2076/U Combination Gas Control Valve, 1/2 in, NPT, 1/2 psi
Honeywell Combination Gas Control Valve, 1/2 in Nominal, NPT Connection, 1/2 psi Pressure, 1 Stage, Intermittent Pilot Ignition, 24 VAC at 60 Hz, 20000 to 200000 Btu/hr Natural Gas Nominal, Natural Gas Fuel, NPT with Plug Pressure Tap, Compression Tube Pilot Hose Connection, Vertical Mounting, 0 to 175 deg F, Dimensions: 4-5/8 in H x 4-1/8 in W x 2-11/16 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$474.94Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Connection TypeNPT
Dimensions4-5/8 " H x 4-1/8 " W x 2-11/16 " D
Fuel TypeNatural Gas
Hose Connection TypeNPT with Plug Pressure Tap, Compression Tube Pilot
Ignition TypeIntermittent Pilot
IndustryHVAC
Mounting TypeVertical
Nominal Capacity20000 to 200000 Btu/hr Natural Gas
Nominal Size1/2
Number of Stages1
Pressure Rating1/2
Temperature Rating0 to 175
Voltage Rating24 VAC at 60 Hz
Additional Information
AGA 4717|CSA 112395|UL MCCZ2.MH5323
Features & Benefits
- Controls includes safety shut-off, manual valve, two automatic operators, pressure regulator and pilot adjustment Provides (2) automatic valves Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends Diaphragm operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted Meets codes requiring dual safety shut-off All adjustments, wiring connections and pilot outlet are accessible from top of gas control Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure Compatible with Eco connector On-off lighting sequence 0 to 90 deg in any direction from the upright position of the gas control knob, including vertically-mounting 1/4 in quick connect male terminals electric connections Straight through configuration Standard opening Standard pressure regulator 0.5 A anticipator setting
Honeywell VR8204A2076/U Combination Gas Control Valve, 1/2 in, NPT, 1/2 psi
BrandHoneywell
MFG #VR8204A2076/U
Keller #609409
