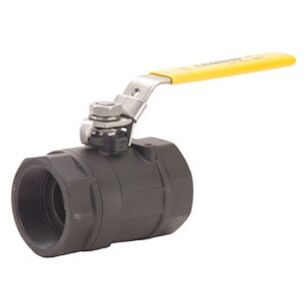

Legend Valve T-725 Series 113-214 2-Piece Ball Valve, 3/4 in, FNPT, Carbon Steel, 2000 psig
MFG #113-214
Item #610000
Mfr. Part #113-214
UPC #662545009032
Legend Valve 2-Piece Ball Valve, T-725 Series, 3/4 in Nominal, FNPT Connection, Large Port, 2000 psig, Gas, Oil, Water Media, 0.59 in Orifice, 2.76 in Inlet to Outlet Length, 2.09 in Top to Inlet Center, Latch-Lock Handle Operator, Panel Mounting, Material Standard: ASTM A216 WCB, A276 316, A351/CF8M, AISI 304, Carbon Steel Body, RTFE Seat, Stainless Steel Stem, PTFE Seal, Vinyl Trim, Stainless Steel Handle, Stainless Steel Ball, PTFE Softgoods, Lead-Free
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$77.48Â /Â ea
Out of Stock
Attributes
Additional Information
Features & Benefits
Documents
Marketing Information
Attributes
BrandLegend Valve
Ball MaterialStainless Steel
Body MaterialCarbon Steel
Connection TypeFNPT
Handle MaterialStainless Steel
Inlet to Outlet Length2.76
Material StandardASTM A216 WCB, A276 316, A351/CF8M, AISI 304
MediaGas, Oil, Water
Mounting TypePanel
Nominal Size3/4
Operator TypeLatch-Lock Handle
Orifice Size0.59
Port TypeLarge
Pressure Rating2000
Seal MaterialPTFE
Seat MaterialRTFE
SeriesT-725 Series
Softgoods MaterialPTFE
Stem MaterialStainless Steel
Top to Inlet Center2.09
Trim MaterialVinyl
Additional Information
ANSI/ASME B1.20.1|Federal Specification WW-V-35C/Type II Composition: CS/Style: 3|MSS Standard Practice 110
Features & Benefits
Heavy-duty two-piece investment cast body design
Bottom loaded blowout-proof stem
Equipped with a latch lock handle
Fiber reinforced graphite impregnated seats maintain their shape in high pressure service
Integral, tapped mounting pad for actuation or panel attachment
