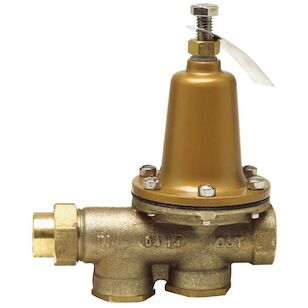

WATTS® LF25AUB-Z3 Series 0009236 Pressure Reducing Valve, 1/2 in Nominal, FNPT, 300 psi, 33 to 180 deg F
WATTS® LF25AUB-Z3 Series 0009236 Pressure Reducing Valve, 1/2 in Nominal, FNPT, 300 psi, 33 to 180 deg F
WATTS® Pressure Reducing Valve, LF25AUB-Z3 Series, 1/2 in Nominal, FNPT Connection, 300 psi, Water Media, 5-5/16 in Inlet to Outlet Length, Copper Silicone Body, Polymer Seat, EPDM Disc, Bronze Trim, EPDM/PTFE Softgoods, Lead-Free, 33 to 180 deg F, 7 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$782.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialCopper Silicone
Connection TypeFNPT
Dimensions7 " H
Disc MaterialEPDM
Inlet to Outlet Length5-5/16
MediaWater
Nominal Size1/2
Pressure Rating300
Seat MaterialPolymer
SeriesLF25AUB-Z3 Series
Softgoods MaterialEPDM/PTFE
Temperature Rating33 to 180
Trim MaterialBronze
Shipping Dimensions (L x W x H)6.5" x 6.44" x 3"
Additional Information
ASSE 1003|CSA B356|cUPC Listed|IAPMO Listed|MIL-V-18146B Type I|NSF/ANSI/CAN 61G
Features & Benefits
- Sealed spring cage with stainless steel cage screws Replaceable seat module Integral stainless steel strainer removable for cleaning
Marketing Information
This 1/2 in lead-free brass water pressure reducing valve for low pressure ranges is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 deg F (0.5 to 82 deg C). The low pressure range is 10 to 35 psi (69 to 241 kPa) with the standard setting at 30 psi (207 kPa).
WATTS® LF25AUB-Z3 Series 0009236 Pressure Reducing Valve, 1/2 in Nominal, FNPT, 300 psi, 33 to 180 deg F
BrandWATTS®
MFG #0009236
Keller #610023
My Part ##
Last Ordered#
$782.00 / ea
