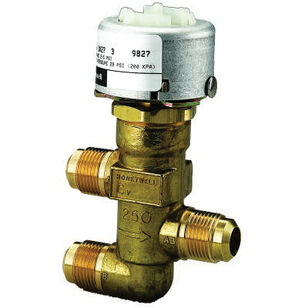

Honeywell VP526A1092/U Pneumatic Mixing Water Valve, 1/2 in, SAE Flared, Brass
Honeywell VP526A1092/U Pneumatic Mixing Water Valve, 1/2 in, SAE Flared, Brass
Honeywell Pneumatic Mixing Water Valve, 1/2 in Nominal, SAE Flared Connection, Number of Ports/Ways: 3-Ways, 250 psi, 2 to 5 psi Spring, 29 psi Maximum Diaphragm, 1.6 Cv Flow Coefficient (Cv), Brass, Water Service, 35 to 250 deg F, 3-1/8 in W x 4-7/8 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$484.54Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Connection TypeSAE Flared
Dimensions3-1/8 " W x 4-7/8 " H
Flow Coefficient (Cv)1.6
IndustryHVAC
MaterialBrass
Nominal Size1/2
Number of Ports/Ways3-Ways
Pressure Rating250 psi, 2 to 5 psi Spring, 29 psi Maximum Diaphragm
Service TypeWater
Temperature Rating35 to 250
Features & Benefits
- Small size permits installation where space is limited Direct-acting, rolling diaphragm actuator with integral high-temperature plastic air connector for 1/4 in OD plastic tubing Spring loaded, self-adjusting Buna-N V-ring packing replaceable Linear and constant total flow throughout full plug travel Push on for 1/4 in OD plastic tubing air connections Proportional normally open valve action 5 psid at 0 lb/sq-in for port A, 50 psid at 12 lb/sq-in for port B close-off ratings at branch line pressure Brass seat, stainless steel stem
Honeywell VP526A1092/U Pneumatic Mixing Water Valve, 1/2 in, SAE Flared, Brass
BrandHoneywell
MFG #VP526A1092/U
Keller #612681
My Part ##
Last Ordered#
$484.54Â /Â ea
