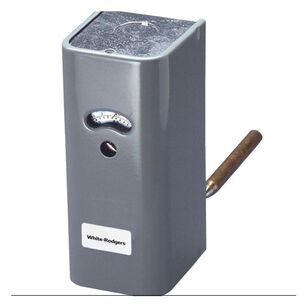

WHITE-RODGERS™ 11D18-1 Aquastat, SPST, Horizontal/Vertical Mounting, Gray, 100 to 240 deg F, 5 to 45 deg F Differential
WHITE-RODGERS™ 11D18-1 Aquastat, SPST, Horizontal/Vertical Mounting, Gray, 100 to 240 deg F, 5 to 45 deg F Differential
WHITE-RODGERS™ Aquastat, 10 A at 120 VAC, 6 A at 240 VAC Full Load, 1/2 in NPT Well Spud, SPST, Horizontal/Vertical Mount, Gray, 100 to 240 deg F, 5 to 45 deg F Differential, 2-5/16 in W x 5.37 in H x 2-9/16 D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$362.53 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWHITE-RODGERS™
Amperage Rating10 A at 120 VAC, 6 A at 240 VAC Full Load
ColorGray
Contact ConfigurationSPST
Differential Temperature5 to 45
Dimensions2-5/16 " W x 5.37 " H x 2-9/16 D
Mounting TypeHorizontal/Vertical
Temperature Rating100 to 240
Well Spud Size1/2 " NPT
Additional Information
CSA Certified|UL Listed
Features & Benefits
- Extra capillary length for extended shank wells Special screw terminals with ears securely hold solid and stranded wires Screwdriver-adjustable differential with direct-read indicator Knockouts on top and bottom and plenty of wiring room Hydraulic action element fast acting
Documents
WHITE-RODGERS™ 11D18-1 Aquastat, SPST, Horizontal/Vertical Mounting, Gray, 100 to 240 deg F, 5 to 45 deg F Differential
BrandWHITE-RODGERS™
MFG #11D18-1
Keller #616845
