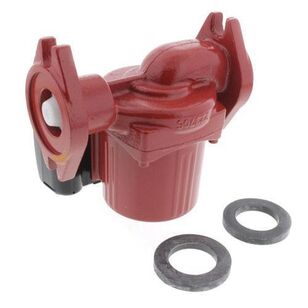

ARMSTRONG Astro 2 Series Astro-230ci 110223-305 Circulator Pump, 0 to 20 gpm, 97 W, 115 V, 0.81 A, 60 Hz, 2800 rpm Motor
ARMSTRONG Astro 2 Series Astro-230ci 110223-305 Circulator Pump, 0 to 20 gpm, 97 W, 115 V, 0.81 A, 60 Hz, 2800 rpm Motor
ARMSTRONG Circulator Pump, Astro 2 Series, Model: Astro-230ci, 0 to 20 gpm Flow Rate, 18 ft Maximum Head, 97 W, 115 V, 0.81 A, 60 Hz, 150 psi Maximum Pressure, 2800 rpm Motor Speed Rating, 1/25 hp, 1/2 in Connection, Flanged Connection, 1 ph Phase, 230 deg F, Iron, 6.38 in H x 6 in W, Additional Information: Noryl Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandARMSTRONG
Additional InformationNoryl Impeller Material
Amperage Rating0.81
Connection Size1/2
Connection TypeFlanged
Dimensions6.38 " H x 6 " W
Flow Rate0 to 20
Frequency Rating60
HP Rating1/25
IndustryPlumbing
MaterialIron
Maximum Head18
Maximum Pressure150
ModelAstro-230ci
Motor Speed Rating2800
Phase1
Power Rating97
SeriesAstro 2 Series
Temperature Rating230
Voltage Rating115
Additional Information
CSA C22.2 File No. 108-01|ETL Listed|NSF 372|UL 778
Features & Benefits
- Ceramic shaft and bearings Cross-reference information is printed on the box for convenient access E-coating on the inside of cast-iron volutes provides enhanced corrosion protection for improved reliability Flange-to-flange and bolt-to-bolt compatibility offers quick and easy exchange of competing models Plug-in terminal strip saves time High-flow check valve is pre-installed for convenience, where the installation does not call for a check valve, it can be removed in seconds Large wiring box and convenient plug-in terminal strip save time EPDM gasket Removable check valve installed at pump outlet Astro 2 circulators offer contractor friendly features for fast and convenient installation Wet rotor mechanical seal
ARMSTRONG Astro 2 Series Astro-230ci 110223-305 Circulator Pump, 0 to 20 gpm, 97 W, 115 V, 0.81 A, 60 Hz, 2800 rpm Motor
BrandARMSTRONG
MFG #110223-305
Keller #619424
