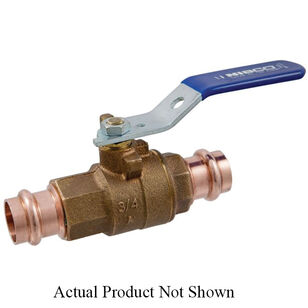

NIBCO PC58570-2IN PRS BALL VLV PXP W/LEV HDLE NOT FOR POTABLE USE
NIBCO PC58570-2IN PRS BALL VLV PXP W/LEV HDLE NOT FOR POTABLE USE
NIBCO® Ball Valve, PC585-70 Series, 2 in Nominal, Female Press Connection, Full Port, 250 psi, Water Media, Manual Actuator, 2 in Orifice, 8.65 in Inlet to Outlet Length, 3.51 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM C84400, C12200, C36000, C37700, C65100, C69300, Bronze Body, RPTFE Seat, Silicon Bronze Alloy Stem, EPDM Seal, Bronze Trim, PTFE Packing, Steel Handle, Brass Ball, EPDM/PTFE Softgoods, 250 deg F, 3.69 in Dia x 11.05 in L x 5.36 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$789.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Actuator TypeManual
ApplicationFor HVAC, hot and cold potable water, and non-potable process water
Ball MaterialBrass
Body MaterialBronze
Connection TypeFemale Press
Dimensions3.69 " Dia x 11.05 " L x 5.36 " H
Domestic/ImportDomestic
Handle MaterialSteel
Inlet to Outlet Length8.65
Material StandardASTM C84400, C12200, C36000, C37700, C65100, C69300
MediaWater
Nominal Size2
Operator TypeLever Handle
Orifice Size2
Packing MaterialPTFE
Port TypeFull
Pressure Rating250
Seal MaterialEPDM
Seat MaterialRPTFE
SeriesPC585-70 Series
Softgoods MaterialEPDM/PTFE
Stem MaterialSilicon Bronze Alloy
Temperature Rating250
Top to Inlet Center3.51
Trim MaterialBronze
Warranty5 Year Limited
Additional Information
MSS SP-110 Specified
Features & Benefits
- Press leak detection feature Dezincification-resistant
Documents
Marketing Information
The NIBCO® press System® is user friendly, quick and easy to install. When properly crimped a unique "N" witness mark is clearly visible. The two piece valve is recommended for many applications, including HVAC, hot and cold potable water and non-potable process water. The lever handle provides convenient quarter-turn operation and bubble tight shut-off. NIBCO® press System® applies the proven performance of press technology to NIBCO® valves and fittings the most specified flow control products in the industry. The NIBCO® press System® features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. NIBCO® press System® valves are backed by a 5 year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO® is the preferred brand in the industry.
