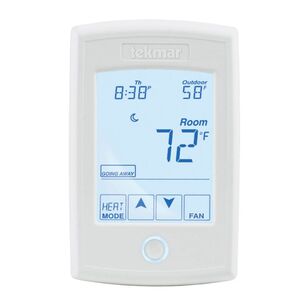

Tekmar® 552 Thermostat, 24 VAC, 2 A, 1.8 VA, 56 VA, 7 day Program Programmability, 1 Heat
Tekmar® 552 Thermostat, 24 VAC, 2 A, 1.8 VA, 56 VA, 7 day Program Programmability, 1 Heat
Tekmar® Thermostat, 24 VAC, 2 A, 1.8 VA, 56 VA Power, 50/60 Hz Frequency, Programmability: 7 day Program, Hardwired Power Source, 1 Heat Stages, Relay Switch, 10 kilo-ohm NTC Thermistor at 77 deg F Sensing Element, Touchscreen Display, 40 to 95 deg F Settings, 32 to 122 deg F Ambient, Less Than or Equal to 90% RH Non-Condensing Humidity, Vertical Mounting, Humidification Setting Range: 5 in H x 0.94 in D, ABS/PC Plastic, White, Dimensions: 5 in H x 3-1/4 in W x 15/16 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$558.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandTekmar®
Amperage Rating2
ColorWhite
Dimensions5 " H x 3-1/4 " W x 15/16 " D
Display TypeTouchscreen
Frequency Rating50/60
Humidification Setting Range5 " H x 0.94 " D
Humidity RatingLess Than or Equal to 90% RH Non-Condensing
MaterialABS/PC Plastic
Mounting TypeVertical
Power Rating1.8 VA, 56 VA
Power SourceHardwired
Programmability7 day Program
Sensing Element10 km-ohm NTC Thermistor at 77 deg F
Stages1 Heat
Switch TypeRelay
Temperature Rating32 to 122 deg F Ambient
Temperature Settings40 to 95
Voltage Rating24
Additional Information
Meets Class B: ICES and FCC Part 15
Features & Benefits
- The tekmarNet thermostat 552 is a communicating touchscreen thermostat designed for hydronic heating systems The extra large touchscreen display allows you to easily adjust seven days programmable schedules and room temperatures to optimize comfort and energy savings It operates a single-zone of heating and has 2-auxiliary sensor inputs that can be assigned to measure room, floor or outdoor temperature Alternatively the room air temperature sensor can also be disabled to solely maintain a minimum floor temperature The 532 can be wired using 2 or 4-wires to connect to TekmarNet zoning controls or can be installed as a stand-alone thermostat using 3-wires Auto heating cycle, air group member, backlight Freeze protection, programmable setback schedule, exercising Pulse width modulation Touchscreen technology Outdoor temperature display Room temperature limiting Zone post-purge and synchronization TekmarNet communication compatible Micro-processor control Indoor use only ambient conditions 1.8 VA standby, 56 VA fully loaded, NEC/CEC class 2 at 24 VAC
Tekmar® 552 Thermostat, 24 VAC, 2 A, 1.8 VA, 56 VA, 7 day Program Programmability, 1 Heat
BrandTekmar®
MFG #552
Keller #622633
My Part ##
Last Ordered#
$558.00 / ea
