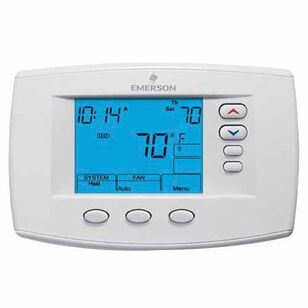

WHITE-RODGERS™ 1F95-0671 Thermostat, mV to 30 VAC, 1.5 to 2.5 A, 30 to 75 W, 5-1-1, 7 day Program Programmability
WHITE-RODGERS™ 1F95-0671 Thermostat, mV to 30 VAC, 1.5 to 2.5 A, 30 to 75 W, 5-1-1, 7 day Program Programmability
WHITE-RODGERS™ Thermostat, mV to 30 VAC, 1.5 to 2.5 A, 30 to 75 W Power, 50/60 Hz Frequency, Programmability: 5-1-1, 7 day Program, Changeover: Auto, Battery, Hardwired Power Source, 2 Heat/2 Cool, 4 Heat/2 Cool Heat Pump Stages, Switch Position: HEAT-OFF-COOL-EM.AUTO (System), AUTO-ON (Fan), 6 sq-in Universal Blue Display, 0.6 deg F Heating, 1.2 deg F Cooling Differential, 45 to 99 deg F Settings, 32 to 105 deg F Ambient, 90% Non-Condensing Humidity, +/-1 deg C Accuracy, Horizontal Mounting, Terminal Designation: RC, RH, C, W/E, W2, Y, Y2, 6, L, +, S, -, (2) AA Alkaline Battery, White, Dimensions: 4.2 in H x 6.4 in W x 1.7 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$341.86 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWHITE-RODGERS™
Accuracy+/-1
Amperage Rating1.5 to 2.5
ApplicationFor 1-stage, multi-stage, heat pump and gas, oil, electric systems, 3-wire zone valves
Battery Type(2) AA Alkaline
ChangeoverAuto
ColorWhite
Differential Temperature0.6 deg F Heating, 1.2 deg F Cooling
Dimensions4.2 " H x 6.4 " W x 1.7 " D
Display Type6 sq-" Universal Blue
Frequency Rating50/60
Humidity Rating90% Non-Condensing
IndustryHVAC
Mounting TypeHorizontal
Power Rating30 to 75
Power SourceBattery, Hardwired
Programmability5-1-1, 7 day Program
Stages2 Heat/2 Cool, 4 Heat/2 Cool Heat Pump
Switch PositionHEAT-OFF-COOL-EM.AUTO (System), AUTO-ON (Fan)
Temperature Rating32 to 105 deg F Ambient
Temperature Settings45 to 99
Terminal DesignationRC, RH, C, W/E, W2, Y, Y2, 6, L, +, S, -
Voltage RatingmV to 30 VAC
Warranty5 Year Limited
Additional Information
NEC Class II, Meets California Building Code, Title 24
Features & Benefits
- Quick one-button programming, exclusive battery power monitor Blue, lighted display for easier low-light viewing, larger, easy-to-read character size, large buttons for easy operation Installer selectable system applications Four time and 4-temperature settings per program (2-setbacks) heat and cool or selectable - 2-time and 2-temperature settings (1-setback) Energy savings upto 33%, patented pre-programmed schedule simplifies time and temperature programming Intuitive menu-driven set-up, programming and operation with audio prompt to confirm touchscreen entries Permanent program retention during power loss Indefinite setpoint hold or temporary temperature override Temporary temperature override - will override program for 2 hr Heating and cooling, heating only or cooling only configuration (installer selectable) Setpoint temperature limited range capable, maintains room temperature to within +/- 1 deg F, room temperature display can be recalibrated up to +/- 4 deg F Furnace filter change reminder, selectable energy management recovery Fast (FA) or slow (SL) heating cycle anticipation, exclusive call for service diagnostic indicator Compressor lockout protection, electric heat option, millivolt compatible Audible feedback, ignition module reset Hardwire or battery with power stealing assist Programmable fan control, keypad lockout
WHITE-RODGERS™ 1F95-0671 Thermostat, mV to 30 VAC, 1.5 to 2.5 A, 30 to 75 W, 5-1-1, 7 day Program Programmability
BrandWHITE-RODGERS™
MFG #1F95-0671
Keller #623509
My Part ##
Last Ordered#
$341.86 / ea
