ASME A112.18.1|CSA B125.1|ASSE 1016/ASME A112.1016|CSA B125.16

• High-flow thermostatic mixing valve Thermostatic technology automatically maintains outlet temperature during water pressure fluctuations and/or inlet water temperature changes Single handle temperature control 17.2 gpm flow rate at 45 psi 3/4 in FNPT inlet connections Two 3/4 in FNPT outlet connections Service stops with integral filters Provides automatic anti-scald protection Adjustable comfort setting (preset at approximately 104 deg F) Integrated adjustable high-temperature limit stop to control maximum water temperature Requires volume control valve trim Requires thermostatic trim Forged de-zincification-resistant brass body provides long-term reliability and resistance to aggressive water conditions Advanced materials selected for resistance to seizing or attack from aggressive water conditions Fully serviceable from the front of the valve Cartridge is reversible for installations where hot and cold supplies are reversed Requires K-9663 twin ell when using a diverter spout

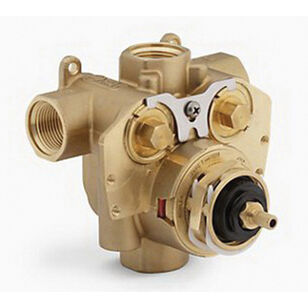

Take showering beyond the ordinary with this 3/4 in MasterShower® thermostatic valve. When paired with compatible trim, this valve delivers a high-temperature limit stop for added safety and a high-flow rate for precise, consistent temperature control.
