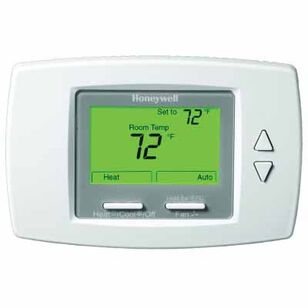

Honeywell TB6575A1000/U SuitePRO Thermostat, 120 to 240 VAC, 1 Heat/1 Cool
Honeywell TB6575A1000/U SuitePRO Thermostat, 120 to 240 VAC, 1 Heat/1 Cool
Honeywell SuitePRO Thermostat, 120 to 240 VAC, 50/60 Hz Frequency, Changeover: Auto, Manual, 1 Heat/1 Cool Stages, Switch Position: OFF-HEAT-COOL-AUTO (System), HI-MED-LOW-AUTO-OFF (Fan), (5) Relay Switch, 6 A at 120 VAC, 3 A at 240 VAC Fan Rating, 1 A at 120 - 240 VAC Relay Rating Contact, LCD Display, 50 to 90 deg F Settings, 5 to 95% RH Non-Condensing Humidity, Horizontal/Vertical Mounting, Dimensions: 5-13/16 in L x 3-13/16 in H x 1-1/8 in D, Premier White
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$452.01Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
ApplicationFor residential and commercial applications such as hotels, condominiums, school classrooms and 2 or 4-pipe fan coil, heat/cool manual/auto changeover, 3-speed fan
ChangeoverAuto, Manual
ColorPremier White
Contact Rating6 A at 120 VAC, 3 A at 240 VAC Fan Rating, 1 A at 120 - 240 VAC Relay Rating
Dimensions5-13/16 " L x 3-13/16 " H x 1-1/8 " D
Display TypeLCD
Frequency Rating50/60
Humidity Rating5 to 95% RH Non-Condensing
IndustryHVAC
Mounting TypeHorizontal/Vertical
Stages1 Heat/1 Cool
Switch PositionOFF-HEAT-COOL-AUTO (System), HI-MED-LOW-AUTO-OFF (Fan)
Switch Type(5) Relay
Temperature Settings50 to 90
Voltage Rating120 to 240
Additional Information
C/US CSA Certified, UL-873 Listed, FCC Part 15 Class B
Features & Benefits
- Provide line/low voltage on/off control for various fan-coil units Simple, intuitive user interface and ease of installation Attractive modern styling ideal for hotels and condos Digital display of ambient temperature, setpoint, mode icons when cooling or heating relays operate, when energy savings mode is active and fan status Four buttons allow manual control of system operation, fan speed and temperature setpoint adjustment VersaSpeed fan ramp algorithm automatically adjusts low, medium, high fan speed Optional freeze protection feature that turns on heat, if necessary Activity sensing algorithm sets back thermostat to economy mode Auto fan rest option sets back fan to auto mode Energy savings mode - external energy savings input from dry contact such as time switch, occupancy sensor or hotel cardkey overrides comfort setpoint with selectable setback heating or cooling setpoint Energy savings input configurable as a normally open or normally closed dry contact Proportional plus integral (P+I) control algorithm for precision temperature regulation Selectable deg C or deg F, adjustable deadband, in auto changeover mode, for heat and cool control Adjustable maximum heat/minimum cool setpoints Installer setup mode allows changes of operating parameters EEPROM permanently retains user settings, Including setpoints, during power loss (no batteries required) Capability to display temperature sensor failure for easier troubleshooting Optional remote temperature sensor and remote pipe sensor, back light 2 x 4 in single gang electrical box horizontal mounting, 2 x 4 or 4 x 4 in junction box Plastic (cover, sub-base and optional adaptor plate) enclosure
