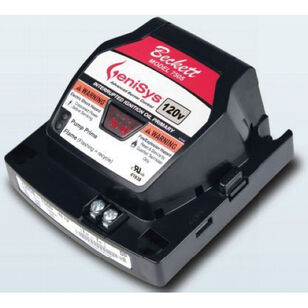

Beckett® 7505B1500U Burner Control With 15 s Pre-Purge, 120 VAC, 150 mA
Beckett® 7505B1500U Burner Control With 15 s Pre-Purge, 120 VAC, 150 mA
Beckett® Burner Control, 120 VAC, 150 mA, 60 Hz, 15 s Lockout, -40 to 50 deg F, 5 to 95% RH Non-Condensing/Non-Crystallizing Humidity Rating, Intermittent Pilot Ignition, <20 gph
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$142.20 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBeckett®
Amperage Rating150
ApplicationFor residential and light commercial oil burners used in boiler, furnace and water heater applications
Environmental Conditions5 to 95% RH, Non-Condensing and Non-Crystallizing, -40 to 50 deg F Storage
Flow Rate<20
Frequency Rating60
Humidity Rating5 to 95% RH Non-Condensing/Non-Crystallizing
Ignition TypeIntermittent Pilot
IndustryPlumbing
Lockout Time15
Temperature Rating-40 to 50
Voltage Rating120
Warranty5 Year
Additional Information
CSA C22.2 No. 199 Certified|UL 372/1998 Listed
Features & Benefits
- Thermostat and boiler control compatible Customizable pre-time and post time (3) status lights for system monitoring and diagnostics Welded relay protection with redundant motor relays Limited reset and limited recycle Sleek, modern design Technician pump prime mode (2) communication ports for adding alarm contacts, programming display and/or future wireless communications
Marketing Information
The Beckett GeniSys™ advanced burner control is a 120 VAC primary safety control. The GeniSys™ is used with a suitable cad cell flame sensor to control the oil burner motor, igniter and optional solenoid valve. It has 24 VAC thermostat terminals compatible with both mechanical and many power stealing thermostats. It can Provide interrupted or intermittent duty ignition and it has a 15 s lockout time.
