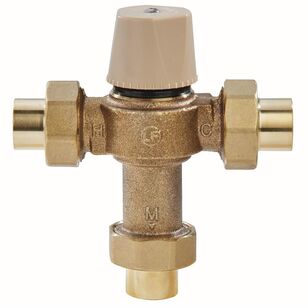

WATTS® LFMMV Series 0559121 Thermostatic Mixing Valve, 1 x 1 x 1 in Nominal, Socket x Socket x Socket, 0.5 to 20 gpm
WATTS® LFMMV Series 0559121 Thermostatic Mixing Valve, 1 x 1 x 1 in Nominal, Socket x Socket x Socket, 0.5 to 20 gpm
WATTS® Thermostatic Mixing Valve, LFMMV Series, 1 x 1 x 1 in Nominal, Socket x Socket x Socket Connection, 150 psi, 0.5 to 20 gpm Flow Rate, Water Media, Brass Body, EPDM Seal, Stainless Steel Disc, 120 to 180 deg F, 5-13/16 in L x 5-7/8 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$997.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialBrass
Connection TypeSocket x Socket x Socket
Dimensions5-13/16 " L x 5-7/8 " W
Disc MaterialStainless Steel
Flow Rate0.5 to 20
IndustryPlumbing
MediaWater
Nominal Size1 x 1 x 1
Pressure Rating150
Seal MaterialEPDM
SeriesLFMMV Series
Temperature Rating120 to 180
Shipping Dimensions (L x W x H)3.687" x 3.5" x 7.25"
Additional Information
ASSE 1017|ASSE 1069|ASSE 1070|UPC Listed
Features & Benefits
- Thermal actuation technology for precise temperature control Locking mechanism secures temperature setting
Documents
Marketing Information
This 1 in lead-free thermostatic mixing valve is designed for residential, institutional, or commercial environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead-free brass body with solder union connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 deg F. The maximum pressure-rating is 150 psi.
WATTS® LFMMV Series 0559121 Thermostatic Mixing Valve, 1 x 1 x 1 in Nominal, Socket x Socket x Socket, 0.5 to 20 gpm
BrandWATTS®
MFG #0559121
Keller #624373
My Part ##
Last Ordered#
$997.00 / ea
