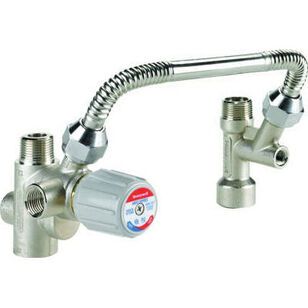

Honeywell AMX300 Series AMX302TLF/U Mixing Valve Kit, 3/4 in, FNPT x MNPT, 0.25 to 19 gpm, 150 lbf/sq-in, Yes
Honeywell AMX300 Series AMX302TLF/U Mixing Valve Kit, 3/4 in, FNPT x MNPT, 0.25 to 19 gpm, 150 lbf/sq-in, Yes
Honeywell Mixing Valve Kit, AMX300 Series, 3/4 in Nominal, FNPT x MNPT Connection, 0.25 to 19 gpm Flow Rate, 150 lbf/sq-in, 2.3 Cv Flow Coefficient (Cv), Brass/Stainless Steel, Yes, 33 to 80 deg F Cold Water Inlet, 100 to 212 deg F Hot Water Inlet, 100 to 145 deg F Mixed Water
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$534.13 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
Brandresideo
Connection TypeFNPT x MNPT
Flow Coefficient (Cv)2.3
Flow Rate0.25 to 19
MaterialBrass/Stainless Steel
Nominal Size3/4
Pressure Rating150
SeriesAMX300 Series
Temperature Rating33 to 80 deg F Cold Water Inlet, 100 to 212 deg F Hot Water Inlet, 100 to 145 deg F Mixed Water
Additional Information
ASSE 1017 Certified, US Patent Number 8074894
Features & Benefits
- Temperature is adjustable using push-twist-release locking handwheel design and if cold water supply is interrupted, flow reduction occurs in seconds The alternate hot port bypasses hot water directly from the tank to non-mixed temperature applications Easy installation on water heaters saves time and money Commonly used for scalding protection PTFE-coating extends service life Free thermostrip included to make temperature setting easy for one person to handle Less than 0.25% low-lead content by weighted average PTFE-coated brass shuttle, EPDM rubber O-ring Minimum temperature difference between hot and mix should be 27 deg F
Documents
Marketing Information
Honeywell AMX300 series DirectConnect™ kits reduce installation time while providing Honeywell's industry leading mixing valve technology, which offers excellent temperature stability and control and minimizes scalding risk to building occupants.
Honeywell AMX300 Series AMX302TLF/U Mixing Valve Kit, 3/4 in, FNPT x MNPT, 0.25 to 19 gpm, 150 lbf/sq-in, Yes
Brandresideo
MFG #AMX302TLF/U
Keller #625109
