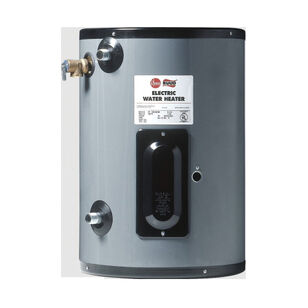

Rheem® 524917 Electric Water Heater, 30 gal, 1.5 to 6 kW, 1 ph, 208 V
Rheem® 524917 Electric Water Heater, 30 gal, 1.5 to 6 kW, 1 ph, 208 V
Rheem® Electric Water Heater, 30 gal Capacity, 1.5 to 6 kW, 30 gph Recovery Rate, 1 Elements, 14.4 A, 208 V, 1 ph Phase, NPT Connection, 3/4 in Connection, 150 psi, Surface Mounting, Automatic Thermostat, Steel, Finish: Porcelain Enamel, 110 to 190 deg F, 32 in H x 22-1/4 in W x 22-1/4 in D, Resistor, Screw-In Element, Copper Element
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,627.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
Amperage Rating14.4
Capacity30
Connection Size3/4"
Connection TypeNPT
Dimensions32 " H x 22-1/4 " W x 22-1/4 " D
Element MaterialCopper
Element TypeResistor, Screw-"
FinishPorcelain Enamel
IndustryPlumbing
MaterialSteel
Mounting TypeSurface
Number of Elements1
Phase1
Power Rating1.5 to 6
Pressure Rating150
Recovery Rate30
Temperature Rating110 to 190
Thermostat TypeAutomatic
Voltage Rating208
Additional Information
AHRI Certified|ASHRAE Compliant|CSA Certified|UL Listed
Features & Benefits
- Long life tank design proprietary steel formulation with a unique coat of high temperature porcelain enamel to maximize corrosion resistance resulting in a superior tank design A patented R-tech anode rod provides advanced technology, equalizing aggressive water action while prolonging the effective life of the anode rod and in turn the life of the tank Long life heating elements, our patented resistor elements are designed with a specially treated, double layer of magnesium oxide and copper to resist corrosion Efficient design, rigid polyurethane foam insulation provides superior insulating qualities resulting in reduced operating costs Automatic temperature control, a surface-mounted thermostat automatically cycles on and off to maintain the water temperature at a desired preset level Temperature limiting control - automatically and safely cuts off the power in the unlikely event that the water temperature exceeds 190 deg F Temperature and pressure relief valve AGA/CSA/ASME-rated and factory installed
Documents
Marketing Information
Point-of use commercial electric line is designed to provide hot water at the consumption point, eliminating costly temperature loss in long piping runs.
Rheem® 524917 Electric Water Heater, 30 gal, 1.5 to 6 kW, 1 ph, 208 V
BrandRheem®
MFG #EGSP30
Keller #627176
My Part ##
Last Ordered#
$3,627.00 / ea
