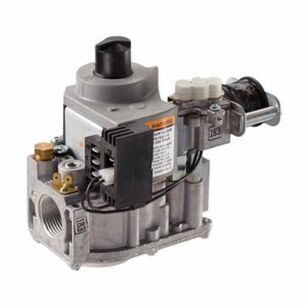

resideo VR8345 Series VR8345Q4563/U Gas Valve, 3/4 in Inlet, 3/4 in Outlet, NPT End, 30000 to 415000 Btu/hr Nominal
Honeywell
resideo VR8345 Series VR8345Q4563/U Gas Valve, 3/4 in Inlet, 3/4 in Outlet, NPT End, 30000 to 415000 Btu/hr Nominal
MFG #VR8345Q4563/U
Item #627521
Mfr. Part #VR8345Q4563/U
UPC #085267797306
resideo Gas Valve, VR8345 Series, 3/4 in Inlet, 3/4 in Outlet, NPT End, 30000 to 415000 Btu/hr Nominal Capacity, Natural Gas, Direct, Intermittent Pilot Ignition, 0.5 psi, -40 to 175 deg F, 24 V, 50/60 Hz, Male Quick-Connect Electrical Connection, 2-11/16 in Overall Length, 4-1/16 in Overall Width, 5-3/8 in Overall Height, Additional Information: Standard Opening
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$510.49Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Additional InformationStandard Opening
Electrical ConnectionMale Quick-Connect
End TypeNPT
Frequency Rating50/60
Gas TypeNatural Gas
Ignition TypeDirect, Intermittent Pilot
Includes(1) Manual Valve, (2) Automatic Operators, (1) Pressure Regulator, (1) Pilot Adjustment, (1) Pilot Plug, (1) Ignition Adapter, (1) Natural to Liquid Propane Conversion Kit and (2) 3/4 x 1/2 in Reducer Bushings
IndustryHVAC
Inlet Size3/4
Nominal Capacity30000 to 415000
Outlet Size3/4
Overall Height5-3/8
Overall Length2-11/16
Overall Width4-1/16
Pressure Rating0.5
SeriesVR8345 Series
Temperature Rating-40 to 175
Voltage Rating24
Warranty12 Month
Additional Information
CSA 112395|UL MCCZ2.MH5323
Features & Benefits
- Replaces many IP, HSI or DSI gas control For use with natural or manufactured gas or LP gas Includes converter kit to adapt from natural to LP gas Compact size All adjustments and wiring connections accessible from top of control 4 in swing radius allows easy rotation into position inside the tightest furnace vestibules Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper Internal inlet screen blocks contaminants in gas line from entering valve
Marketing Information
Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or intermittent pilot ignition in 24 V, gas fired appliances, with capacities from 20 to 200 cfh (VR8245M) or 30 to 415 cfh (VR8345M).
