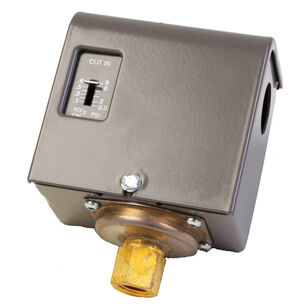

Honeywell PA404A PA404A1033/U Pressuretrol Pressure Controller With additive differential, 1/4 in Nominal, SPST
MFG #PA404A1033/U
Item #627764
Mfr. Part #PA404A1033/U
UPC #085267990134
Honeywell Pressuretrol Pressure Controller With additive differential, Model: PA404A, 1/4 in Nominal, Female Pipe Thread Connection, Snap Switching Action, Contact Configuration: SPST, 20 lb/sq-in, 0.5 to 9 lb/sq-in Operating, 1 to 5 lb/sq-in Adjustable Differential, 0.25 A at 0.25 to 12 VDC, 120 VAC, Resistive: 8.3 A, 240 VAC, Resistive: 8.3 A, 277 VAC, Resistive 7.2 A Contact Rating, 150 deg F Ambient, 4-15/32 in H x 3-3/8 in W x 2-1/4 in D
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$571.37Â /Â ea
In Stock
Attributes
Additional Information
Features & Benefits
Documents
Marketing Information
Attributes
BrandHoneywell
Connection TypeFemale Pipe Thread
Contact ConfigurationSPST
Contact Rating0.25 A at 0.25 to 12 VDC, 120 VAC, Resistive: 8.3 A, 240 VAC, Resistive: 8.3 A, 277 VAC, Resistive 7.2 A
Dimensions4-15/32 " H x 3-3/8 " W x 2-1/4 " D
IndustryHVAC
ModelPA404A
Nominal Size1/4
Pressure Rating20 lb/sq-", 0.5 to 9 lb/sq-" Operating, 1 to 5 lb/sq-" Adjustable Differential
Switching ActionSnap
Temperature Rating150 deg F Ambient
Additional Information
UL Listed, file Number MP466, guide Number MBPR, CSA Listed, file Number LR1620
Features & Benefits
Pressure actuated high limit, safety control for steam heating boilers, It breaks an electrical circuit to shut down the burner if steam pressure rises above a safe level
Contains an SPST Micro switch snap-acting switch
Sensitive pressure actuated diaphragm expands or contracts with pressure variations, moving a lever mechanism which operates the snap switch
A screw on top of the case allows set point adjustment without removing the cover
Differential is adjusted by means of a dial located inside the case
Recommended minimum setpoint is differential setting plus 1-1/2 lb/sq-in
Stainless steel diaphragm sensor element
Makes at setpoint on pressure fall breaks at setpoint plus differential on pressure rise
The PA404 is a Series 40 (Two-wire, SPST) pressuretrol controller for use in 24, 120, 240, or 277 V control circuits or in self-powered (millivoltage) applications.
