AFCON 3IN CPVC 2-HOLE CLAMP 510 (ANVIL 0502002412 3 186D)
AFCON 3IN CPVC 2-HOLE CLAMP 510 (ANVIL 0502002412 3 186D)

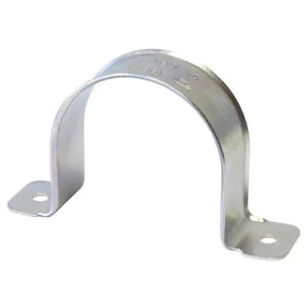

SCI® 2-Hole Pipe Strap, Fig 186 Series, Fits Pipe Size: 3 in, 1/4 in Hole, Steel Body, Finish: Pre-Galvanized, 6-5/16 in Length, 1-3/16 in Width, 3-1/2 in Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$9.78 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSCI®
Body MaterialSteel
FinishPre-Galvanized
Fits Pipe Size3
Height3-1/2
Hole Size1/4
IndustryFire Protection
Length6-5/16
Nominal Size3"
SeriesFig 186 Series
Width1-3/16
Additional Information
ASTM A653|cULus Listed
Features & Benefits
- Beveled edge design helps protect the CPVC pipe from any rough surface Easily attaches to wood structure with #10 x 1 in hex washer head self-threading screw supplied with product no pre-drilling required
Documents
Marketing Information
Hanger for CPVC pipe in the horizontal position on the bottom and side of structural wood beams, composite beams and steel 20 ga (min). Can be used as a restrainer when installed on top of structural wood beams, for limiting pipe movement due to thrust loads during sprinkler system start-up. It can also be used as a guide to limit movement for pipe in the vertical position. When used on composite wood beams, web thickness must be 3/4 in or greater.
AFCON 3IN CPVC 2-HOLE CLAMP 510 (ANVIL 0502002412 3 186D)
BrandSCI®
MFG #0502002412
Keller #628507
My Part ##
Last Ordered#
$9.78 / ea
