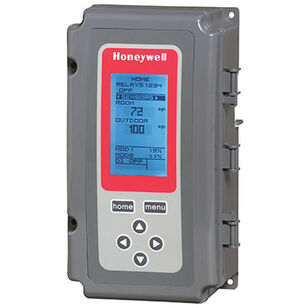

Honeywell T775R2019/U Temperature Control, 24/120/240 VAC, Configuration: (4) SPDT
Honeywell T775R2019/U Temperature Control, 24/120/240 VAC, Configuration: (4) SPDT
Honeywell Temperature Control, T775R Model, 24/120/240 VAC, Configuration: (4) SPDT, +/-1 deg F at 77 deg F Accuracy, Sensing Element: PTC Thermistor, 50/60 Hz, 10 A at 24 VAC Resistive, 9.8 A Full Load, 58.8 A Locked Rotor, 1/2 hp at 120 VAC, 4.9 A Full Load, 29.4 A Locked Rotor, 1/2 hp at 240 VAC Contact, 1 - 150 deg F Differential, Temperature Settings: -40 to 248 deg F, 4-13/32 in L, 8-5/32 in H, 2-15/16 in W, -40 to 125 deg F at 50 Hz, -40 to 140 deg F at 60 Hz
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,237.26Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Accuracy+/-1 deg F at 77 deg F
Configuration(4) SPDT
Contact Rating10 A at 24 VAC Resistive, 9.8 A Full Load, 58.8 A Locked Rotor, 1/2 hp at 120 VAC, 4.9 A Full Load, 29.4 A Locked Rotor, 1/2 hp at 240 VAC
Differential Temperature1 - 150
Frequency Rating50/60
Height8-5/32
IndustryHVAC
Length4-13/32
ModelT775R
Sensing ElementPTC Thermistor
Temperature Rating-40 to 125 deg F at 50 Hz, -40 to 140 deg F at 60 Hz
Temperature Settings-40 to 248
Voltage Rating24/120/240
Width2-15/16
Additional Information
UL 60730-1, cUL Listed, CE Certified, C-Tick Approved
Features & Benefits
- Save time on installations with the easy-to-use graphical interface, large display and the intuitive programming Use the time clock scheduler or digital input to control the setback and disable output options to help save energy Protect equipment from freezing or over heating on models with the modulating high or low limit control option Get pinpoint control on modulating outputs by setting the integral and derivative times (PI or PID) Configure models with reset in a few easy steps Control floating actuators with floating outputs on select models Eliminate the need for a separate time delay device and protect equipment with the minimum off time option (2) input sensor NEMA 1 enclosure
