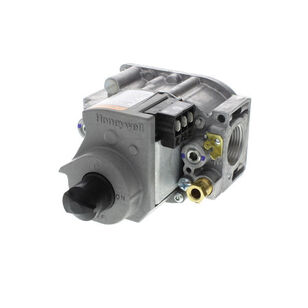

Honeywell VR8304 Series VR8304H4503/U Combination Gas Control Valve, 3/4 in, 0.5 psi
Honeywell VR8304 Series VR8304H4503/U Combination Gas Control Valve, 3/4 in, 0.5 psi
Honeywell Combination Gas Control Valve, VR8304 Series, 3/4 in Nominal, 0.5 psi Pressure, 1 Stage, Intermittent Pilot Ignition, Electrical Connection: 1/4 in Quick-Connect Male Terminal, 24 VAC at 60 Hz, 30000 to 415000 Btu/hr, 300000 Btu/hr at 1 in-WC Pressure Drop Nominal, LP Gas, Natural Gas Fuel, NPT with Plug Pressure Tap, Compression Pilot Hose Connection, 0 to 175 deg F, Dimensions: 5-3/8 in H x 4-1/16 in W x 2-11/16 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$687.46Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Dimensions5-3/8 " H x 4-1/16 " W x 2-11/16 " D
Electrical Connection1/4 " Quick-Connect Male Terminal
Fuel TypeLP Gas, Natural Gas
Hose Connection TypeNPT with Plug Pressure Tap, Compression Pilot
Ignition TypeIntermittent Pilot
Nominal Capacity30000 to 415000 Btu/hr, 300000 Btu/hr at 1 "-WC Pressure Drop
Nominal Size3/4
Number of Stages1
Pressure Rating0.5
SeriesVR8304 Series
Temperature Rating0 to 175
Voltage Rating24 VAC at 60 Hz
Additional Information
UL MCCZ2.MH5323|CSA international 112395
Features & Benefits
- Controls includes safety shut-off, manual valve, two automatic operators, pressure regulator and pilot adjustment Provides (2) automatic valves Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends Diaphragm operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted Meets codes requiring dual safety shut-off All adjustments, wiring connections and pilot outlet are accessible from top of gas control Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure Compatible with Eco connector On-off lighting sequence 0 to 90 deg in any direction from the upright position of the gas control knob, including vertically-mounting Straight through configuration
Documents
Marketing Information
Combination gas control for use in 24 VAC and 120 VAC, gas-fired, intermittent pilot appliances with capacities from 30 to 415 cfh.
Honeywell VR8304 Series VR8304H4503/U Combination Gas Control Valve, 3/4 in, 0.5 psi
BrandHoneywell
MFG #VR8304H4503/U
Keller #629466
My Part ##
Last Ordered#
$687.46Â /Â ea
