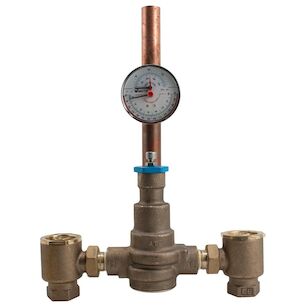

POWERS™ LFSH1430 Series LFSH1432 11 High/Low Master Tempering Valve, 3/4 x 1 in Nominal, NPT, 57 gpm, 125 psi
POWERS™ LFSH1430 Series LFSH1432 11 High/Low Master Tempering Valve, 3/4 x 1 in Nominal, NPT, 57 gpm, 125 psi
POWERS™ High/Low Master Tempering Valve, LFSH1430 Series, 3/4 x 1 in Nominal, NPT Connection, 125 psi, 57 gpm Flow Rate, 8.54 Cv Nominal Capacity, Water Media, Checkstop Actuator, 11.625 in Inlet to Outlet Length, Brass Body, Brass Handle, Finish: Rough Bronze, 90 to 160 deg F, 11 5/8 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$8,617.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandPOWERS™
Actuator TypeCheckstop
Body MaterialBrass
Connection TypeNPT
Dimensions11-5/8 " L
FinishRough Bronze
Flow Rate57
Handle MaterialBrass
Inlet to Outlet Length11-5/8
MediaWater
Nominal Capacity8.54
Nominal Size3/4 x 1
Pressure Rating125
SeriesLFSH1430 Series
Temperature Rating90 to 160
Additional Information
ASSE 1017 Specified|ATA Compliant|CSA B125 Certified
Features & Benefits
- Superior low flow temperature control and shut-off in the event of cold water failure Dirt and lime-resistant poppet and seat design Temper water as high as 201 gpm and as low as 1 gpm with thermostatic tempering valve listed to ASSE 1017 and certified to CSA B125 Vandal-resistant locking mechanism secures temperature setting
Documents
Marketing Information
Single solution Hi/Lo valves available in three sizes that temper water as high as 201 gpm and as low as 1 gpm. All valves are listed to ASSE 1017 and certified to CSA B125. Valves feature advanced paraffin actuation technology and a booster funnel design for dynamic response and superior low flow temperature control. The LFSH1430 line also features a single seat design for virtual shutdown in the event of cold water failure, triple duty check stops with screens and a 5 deg F approach temperature for low temperature hot water supply. Valves are available in lead free rough bronze and chrome plated finish.
