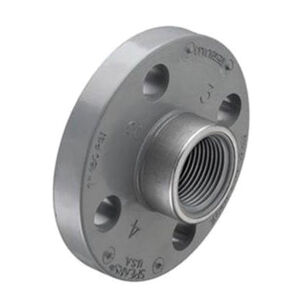

SPEARS 852-030CSR 3IN CPVC 1-PC FLG
SPEARS 852-030CSR 3IN CPVC 1-PC FLG
Spears® 1-Piece Flange, Flange Fitting, 3 in Connection Size 1, SR FIPT Connection Type 1, 3 in Connection Size 2, SR FIPT Connection Type 2, FPT|FPT Connection, CPVC, Molded CPVC Material Construction, Gray, 1-1/16 in Flange Thickness, 4-Bolt Holes, 5/8 in Bolt Hole Diameter, 150 lb Pressure Class, 150 psi, 7-1/2 in OD x 2-5/16 in H, 73 deg F, Additional Information: 6 in Dia Bolt Circle, 3-1/4 in Minimum Bolt Length
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$226.59 / ea
In Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandSpears®
Additional Information6 " Dia Bolt Circle, 3-1/4 " Minimum Bolt Length
Bolt Hole Diameter5/8
ColorGray
Connection Size 13
Connection Size 23
Connection TypeFPT|FPT
Connection Type 1SR FIPT
Connection Type 2SR FIPT
Dimensions7-1/2 " OD x 2-5/16 " H
Fitting TypeFlange
Flange Thickness1-1/16
IndustryPlumbing
MaterialCPVC
Material ConstructionMolded CPVC
Number of Bolt Holes4
Pressure Class150
Pressure Rating150
Temperature Rating73
WarrantyLimited Lifetime
Additional Information
ANSI B16.5|ASTM D1784/D4024/F1498|NSF Certified
Documents
Marketing Information
Molded class 150 flange fittings are coupling devices designed for joining IPS plastic piping systems, where frequent disassembly may be required and can be used as a transitional fitting for joining plastic to metal piping systems. Suitability of application is at the discretion of the user.
SPEARS 852-030CSR 3IN CPVC 1-PC FLG
BrandSpears®
MFG #852-030CSR
Keller #633181
