ASME A112.18.1|ASSE 1010|ASTM E119|ASTM E814|CAN/ULC S115|IAPMO Listed|NSF 372|UL 1479

• Boxes-mount securely to stud or over studs Separates supply and drainage systems into two stud bays Supply lines can be mounted from above or below High quality quarter-turn ball valves with 3/4 in male hose thread outlet connections

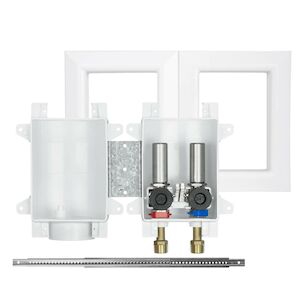

Sioux Chief 696R Series OxBox™ fire-rated outlet boxes shall be used where necessary in plumbing supply/drainage systems. Unit shall allow for mounting with supply lines from top or bottom, mounted over stud or with one outlet box per stud cavity. Supply and drain boxes can be connected using provided galvanized U-clip or separated as desired into individual stud cavities. Supply box can be inverted. Arrester variations can be installed with arresters at any angle. Unit shall be available with quarter-turn valves. Metal support bracket shall install into top/bottom tracks of box. Drain box shall have a 5/8 in integral testable nipple on knockout. Outlet connections shall be generally 3/4 in outlet connections should generally be provided with a test/tamper-resistant cap. Valves should be plated. Arrester option handles can be operated together (single throw) or independently.
