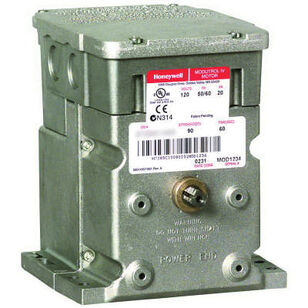

Honeywell Modutrol IV 90 M9174C1025/U Electric Motor, 120 VAC, 30 - 60 sec Timing, Die-Cast Aluminum Housing
Honeywell Modutrol IV 90 M9174C1025/U Electric Motor, 120 VAC, 30 - 60 sec Timing, Die-Cast Aluminum Housing
Honeywell Modutrol IV Electric Motor, Series: 90, 120 VAC, 50/60 Hz, 12 V-A VA, Quick Connect Terminal Electrical Connection, 30 - 60 sec Timing, Die-Cast Aluminum Housing, 75 in-lb Torque, -40 to 150 deg F Ambient, 5-1/2 in W x 6-7/16 in H x 8-3/4 in D, Foot Mounting
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,053.10Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Dimensions5-1/2 " W x 8-3/4 " D x 6-7/16 " H
Electrical ConnectionQuick-Connect Terminal
Frequency Rating50/60
IncludesTransformer
MaterialDie-Cast Aluminum Housing
Mounting Type'
Series90 Series
Temperature Rating-40 to 150 deg F Ambient
Timing Range30 to 60
Torque Rating75
VA Rating12
Voltage Rating120
Additional Information
UL Listed, file E4436, guide XAPX, CE EN55011 (Emission), EN50082-2 (Immunity) 73/23/EEC (LVD)
Features & Benefits
- 91 proportioning Series 90 control Dual-ended motor shaft, non-spring return 2 auxiliary switches Replaces M934A,D, M941, M944A,C,D, M945A,D,F, M954, M965 and M975 motors Integral junction box provides NEMA 3 weather protection Integral spring return returns motor to normal position when power is interrupted Motor and circuitry operate from 24 VAC models available with factory installed transformer or a field added internal transformer Adapter bracket for matching shaft height of older motors is available Integral auxiliary switches are available factory-mounted or can be field added Spring return motors can operate valve linkages from power end or auxiliary end shafts for normally closed or normally open valve applications All models have auxiliary switch cams Fixed torque throughout the entire voltage range Motors are designed for either normally open or normally closed valves and dampers Field addable interface modules can be-mounted in junction box to upgrade the motor to Series 70 (electronic) control 10mm L x 3/8 in Dia Shaft Internal auxiliary switch ratings - 7.2 A at 120 VAC A full load, 43.2 A at 120 VAC A locked rotor, 3.6 A at 240 VAC A full load, 21.6 A at 240 VAC A locked rotor Clockwise (as viewed from power end) (normally closed) shaft rotation (upon control signal increase) Adjustable: 90 - 160 deg, asymmetrical stroke setting
Documents
Honeywell Modutrol IV 90 M9174C1025/U Electric Motor, 120 VAC, 30 - 60 sec Timing, Die-Cast Aluminum Housing
BrandHoneywell
MFG #M9174C1025/U
Keller #636687
My Part ##
Last Ordered#
$3,053.10Â /Â ea
