• NPT threaded female inlet by NPT threaded female outlet connections
• Lead free brass body construction
• Bypass to control thermal expansion pressure
• Enlarged diaphragm, spring cage and seat orifice for super capacity performance
• Serviceable in line
• Disc holder removable for replacement of disc without dismantling the valve, no special tools are required
• Sensitive spring and large diaphragm for accurate pressure control
• High temperature resisting diaphragm for hot or cold water
• Sealed spring cage

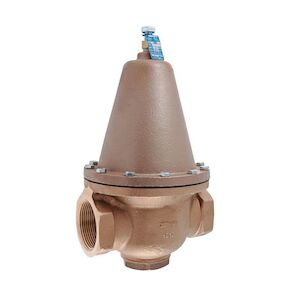

This 2 1/2 inch super capacity lead free water pressure reducing valve is commonly installed at the meter in residential, commercial and industrial buildings. It is designed to control the water pressure flowing to all the appliances and outlets within the building and provides an inexpensive means of supplying lower, more functional water pressure to outlets and appliances. It features a lead free cast copper silicon alloy body, bypass to control thermal expansion pressure, NPT threaded female inlet and outlet connections, high temperature resisting enlarged diaphragm for hot or cold temperatures, a sealed spring cage and seat orifice for super capacity performance. This valve can be used for accessible outdoor waterworks or pit installations. The adjustable reduced pressure range is 25 to 75 psi (172 to 517 kPa).
