ASSE 1017|cUPC Listed|IAPMO Listed

• Paraffin-based thermostat to sense and adjust outlet temperature Dirt and lime-resistant poppet and seat design Vandal-resistant locking mechanism to secure temperature setting Virtual shut off if supply pressure fails

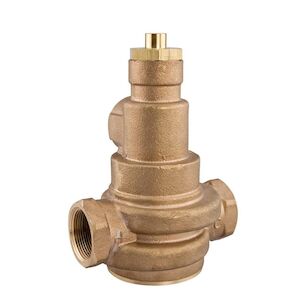

This 1-1/4 in lead-free master mixing valve is designed for use in commercial and institutional applications, to mix hot and cold water to reduce high service water temperature to the building distribution piping system. It is designed for installation at the hot water source. Features a lead-free brass body construction, a copper paraffin thermostat assembly and a lockable temperature adjustment for increased safety. Polysulfone internals resist excessive heat, liming and corrosion, and a single seat design ensures tight shut off in the event of cold water supply loss. Listed to ASSE 1017 and IAPMO cUPC in compliance with CSA B125.3. the temperature range is 90 to 180 deg F and the maximum pressure is 125 psi.
