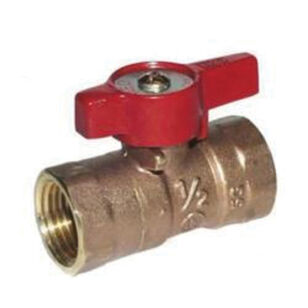

Legend Valve 102-903 Red Top Ball Valve, 1/2 in Nominal, FNPT, 400 lb/sq-in CWP, Handle Operator, Brass Body
Legend Valve 102-903 Red Top Ball Valve, 1/2 in Nominal, FNPT, 400 lb/sq-in CWP, Handle Operator, Brass Body
Legend Valve Red Top Ball Valve, FNPT Connection, 1/2 in Nominal, 400 lb/sq-in CWP, 1.22 in Top to Inlet Center, 0.39 in Opening, Handle Operator, Brass Body, PTFE Seat, Brass Trim, 2.17 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$14.15Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLegend Valve
Body MaterialBrass
Connection TypeFNPT
Dimensions2.17 " L
IndustryPlumbing
Nominal Size1/2
Opening Size0.39
Operator TypeHandle
Pressure Rating400 lb/sq-" CWP
Seat MaterialPTFE
Top to Inlet Center1.22
Trim MaterialBrass
Additional Information
ANSI Z21.15/B1.20.1, ASME B1.20.1/B124 UNS C37700, CSA Certified, ISO 9002 Certified, Massachusetts code Compliant, UL Listed
Features & Benefits
- Chrome-plated ball and soft seats resist contamination build-up and offer a positive seal in low-or moderate-pressure gas applications Quarter-turn, ball-type, forged brass design is more compact and superior to traditional cast bronze or cast iron gas cocks The 400 lb/sq-in pressure rating permits high-pressure air tests, without the grease-seal blowout common to plug-type gas cocks Not suitable for steam service CSA certified for use with natural, manufactured, mixed, liquid petroleum and LP gas/air mixtures CSA certified 3-88 for use in 2 or 5 lb house piping systems Economy gas ball valve 400 lb/sq-in non-shock cold working pressure
Documents
Legend Valve 102-903 Red Top Ball Valve, 1/2 in Nominal, FNPT, 400 lb/sq-in CWP, Handle Operator, Brass Body
BrandLegend Valve
MFG #102-903
Keller #64121
