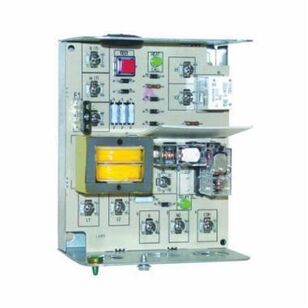

resideo R8845U1003/U Universal Switching Relay With 120 V 60 Hz Primary Internal Transformer, 120 V, SPST, 24 V Coil
resideo R8845U1003/U Universal Switching Relay With 120 V 60 Hz Primary Internal Transformer, 120 V, SPST, 24 V Coil
resideo Universal Switching Relay, 120 V, 60 Hz, 24 V Coil, SPST Contact Form, 7.4 A at 120 VAC Contact Rating, Wall Mounting, Captivated Wire Clamp Screw Terminal, LED Display, -20 to 120 deg F, 4-7/16 in Overall Width, 6-1/4 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$240.94 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Coil Voltage24
Contact FormSPST
Contact Rating7.4 A at 120 VAC
Display TypeLED
Frequency Rating60
Mounting TypeWall
Overall Height6-1/4
Overall Width4-7/16
Temperature Rating-20 to 120
Terminal TypeCaptivated Wire Clamp Screw
Voltage Rating120
Additional Information
CSA Guide No. XAPX7|UL File No. E4436/Guide No. XAPX
Features & Benefits
- Replaceable socketed relays (2) troubleshooting LED Push to test button Replaceable transformer fuse Low voltage contact rating for PowerPile® application Long life DC relay drive control technology Relay for use with external 24 V or 24 VDC supply, with line voltage control or with internal 24 V transformer supply One model replaces many competitor models One model may replace many models - R182A, B, C, J/R482A, B, C, J/R845/R882A, B, C, J/RA832 With 24 V 12 VA secondary internal transformer and enclosure
Marketing Information
The R8845U universal switching relay with 24 V transformer provides intermediate switching of line and low voltage devices from a line or low voltage controller and is typically applied in hydronic heating systems.
resideo R8845U1003/U Universal Switching Relay With 120 V 60 Hz Primary Internal Transformer, 120 V, SPST, 24 V Coil
BrandHoneywell
MFG #R8845U1003/U
Keller #641458
My Part ##
Last Ordered#
$240.94 / ea
